XTDU102 MULTIFUNCTION + CYCLICAL ASYMETRIC

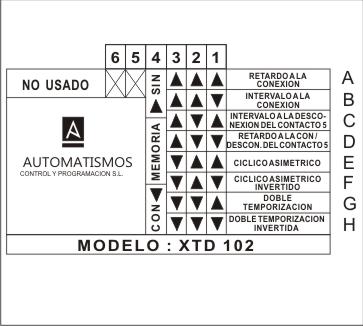

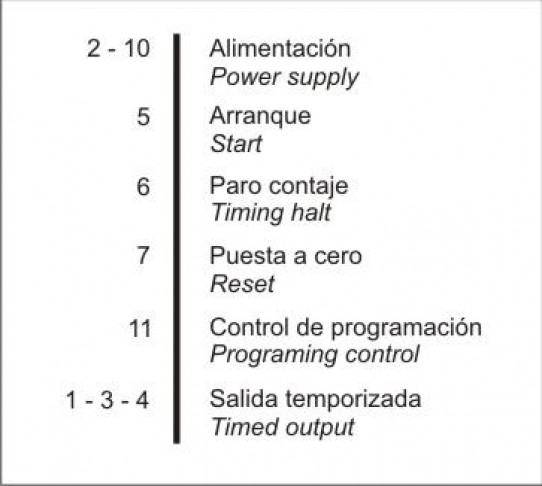

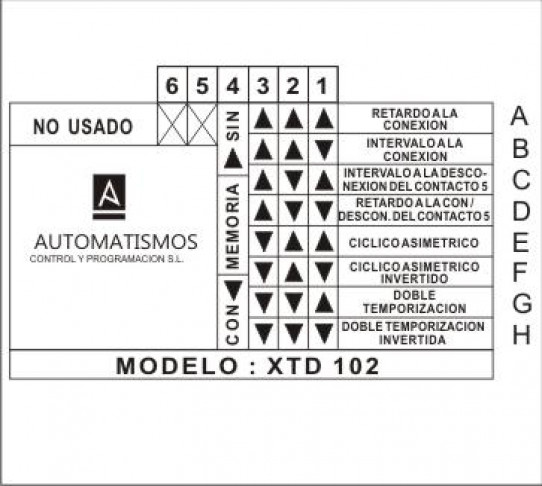

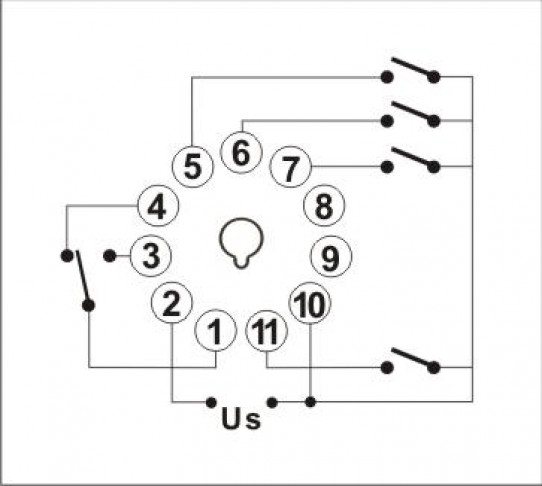

CONNECTIONS SCHEME CONNECTION TERMINALS DIP SIDE SWITCH

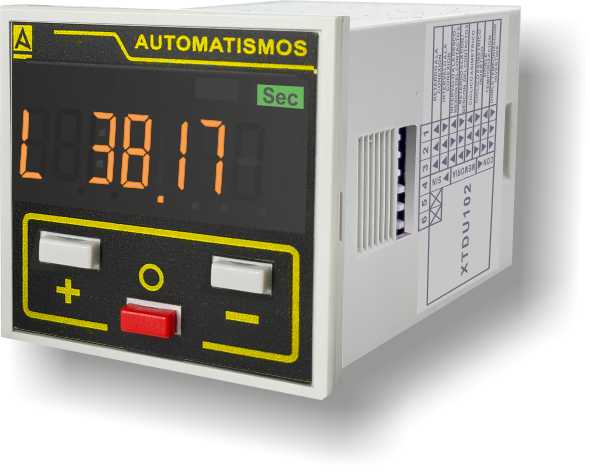

DIGITAL TIMER



Digital timer with 8 job functions
Time scale of 0.01 sec. to 99.9 hours
Depending on the operating mode, it can reach 999.9 hours

Supply voltage .... 12 VDC; 24 VDC; 24 VAC; 48 VAC; 110 VAC; 230 VAC
Output contact .... Max. 8A 250 VAC
Feature selection .... Side DIP switch
Connection .... Base undecal
