Electrical control and measurements >

MVT101 THREE PHASE VOLTMETER

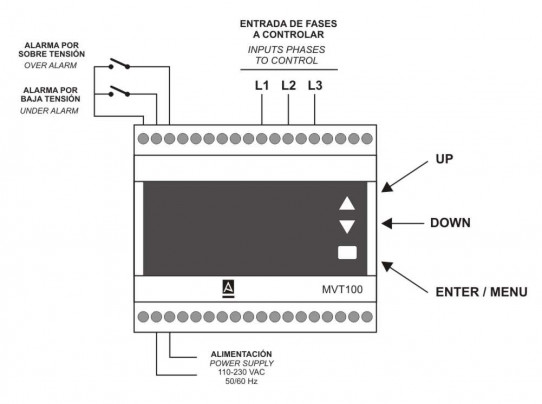

CONNECTIONS SCHEME

THREE PHASE VOLTMETER



Three-phase three-wire voltmeter
High and low voltage alarm output
Phase loss alarm
Display of the effective value of the selected phase
Programming of the overvoltage and undervoltage values
4 different functions
Possibility of mounting on DIN rail or on wall

Supply voltage ... 110 VAC a 230 VAC
Output contacts .... Max. 8A 250 VAC
Format .... 105,5 x 90 x 58,5 mm
Fixing on panel .... 35 mm track (EN60715)

Request information
