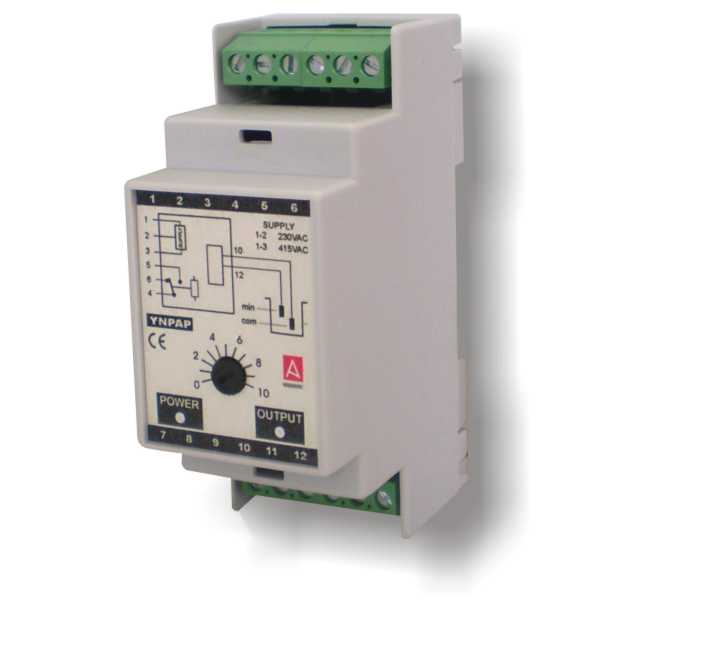

YNPA1 FOR WELL WIHT SENSITIVITY ADJUSTMENT

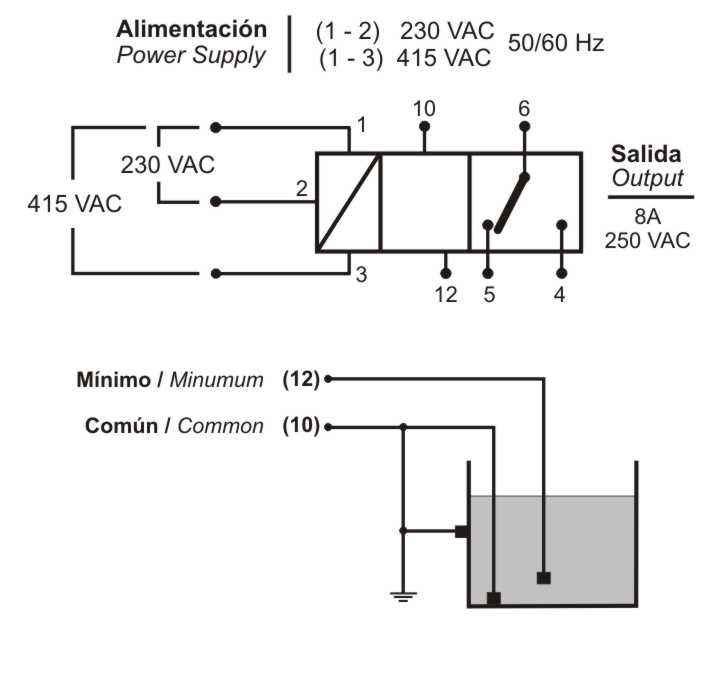

CONNECTIONS SCHEME

LIQUID LEVEL CONTROL FOR WELL WIHT SENSITIVITY ADJUSTMENT



Liquid level control for well with sensitivity adjustment
Two supply voltages
Sensitivity of probe inputs adjustable from 5 to 50 Kohms

Supply voltage ... 230 VAC at 415 VAC
Output contact .... Max. 8A 250 VAC
Format .... 36 x 90 x 58,5 mm
Fixing on panel .... 35 mm track (EN60715)

Request information
