PNTC01 · NTC THERMOSTAT

PNTC01 digital thermostat for NTC 10 kΩ sensor: cooling or heating, −50 to 120 °C, programmable hysteresis and 1 x SPDT 8A. 72 × 36 panel.

Features

• ✓For cold rooms, display cabinets and air conditioning: programmable cooling or heating function
• ✓Range from −50 to 120 °C with NTC 10 kΩ B3950 sensor
• ✓Programmable hysteresis
• ✓Reading with or without decimal
• ✓Setpoint with the ▲ and ▼ keys: saved automatically after 3 seconds

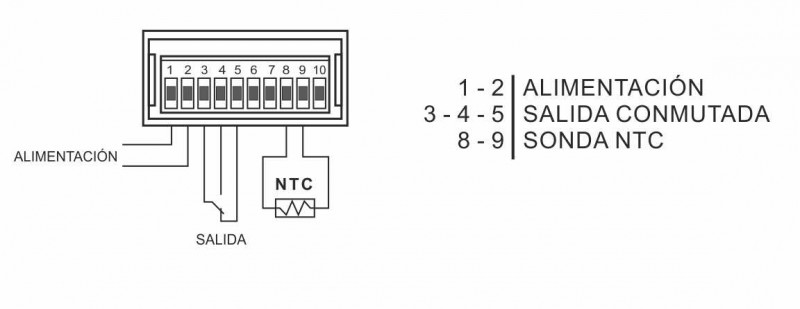

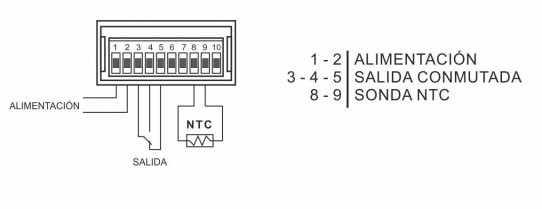

• ✓Plug-in connector

Documentation

How it works

1. 1The setpoint is changed with the ▲ and ▼ keys; if nothing is pressed for 3 seconds, it is saved.
2. 2To enter the parameters, the unit is disconnected and reconnected with both keys pressed.
3. 3The hysteresis (HYS), the decimal point and the heating (HEat) or cooling (CooL) function are set in this order.

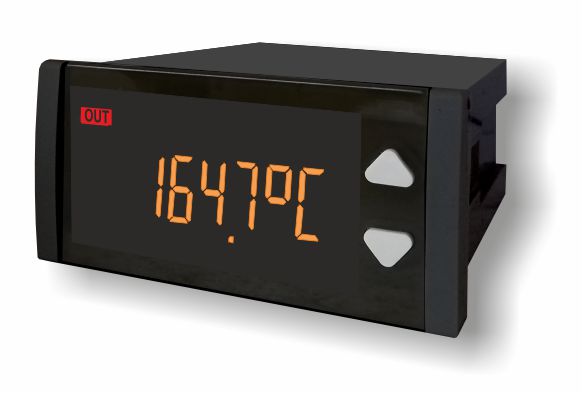

4. 4The OUT LED shows when the output is on.
