STDU17 · MULTIFUNCTION DIGITAL TIMER

MULTIFUNCTION DIGITAL TIMER

Description
Especifications

STDU17 digital multifunction timer from the special S series: 6 functions, from 0.01 s to 99.9 h, setpoint and time together. 48 × 48 panel.

Product type:	Digital multifunction timer
Installation:	48 × 48 mm panel, 11-pin socket
Functions:	6 (A to F)
Control inputs:	Start, count stop and reset

Features

✓Programmed like an analogue timer: setpoint and elapsed time visible together
✓6 working functions selected by side DIP switch
✓8 time ranges, from 0.01 s to 99.9 h
✓Start, count stop and reset inputs
✓IP65 front and transformer supply
✓48 × 48 mm format with 11-pin socket

Supply

24 … 230 VAC · 12/24 VDC

Output

1 x SPDT 8A

Times

0.01 s … 99.9 h

Format

48 × 48 · IP65

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

1With the unit de-energised, the range and function are selected with the side DIP switch.
2The time is preset from the front.
3Timing starts when the start contact closes, or on power-up if it is already closed.
4When time T is reached the output switches; after a power cut the new cycle always starts from zero.

You may also be interested in

XTDU302Digital multifunction XTDU309Digital with lock XLT4HDigital 8 functions XMD001Analogue with elapsed time

Frequently asked questions

Which functions does it have?

Six: on-delay, interval on energising, interval on energising / de-energising and on de-energising of the auxiliary contact, symmetrical cyclic and inverted symmetrical cyclic.

What happens after a power cut?

The new cycle always starts from zero.

Which socket does it use?

An 11-pin socket: ZB11-0 for DIN rail, PG11 with screw or TBEU1E in-line.

General information

Reference	STDU17 (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series	S · 48 × 48 mm panel, special series
Product type	Digital multifunction timer

Electrical specifications

Supply	24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Supply type	Transformer (VAC)
Consumption	1.7 W
Output	1 x SPDT 8A
Control inputs	Start · count stop · reset

Times and functions

Range	0.01 s to 99.9 h
Ranges	8, by side DIP switch
Functions	6 (A to F), by side DIP switch

Indications

Display

Setpoint and elapsed time together

Housing and mounting

Format	48 × 48 mm
Panel cut-out	45 × 45 mm
Fixing	Snap-in bracket

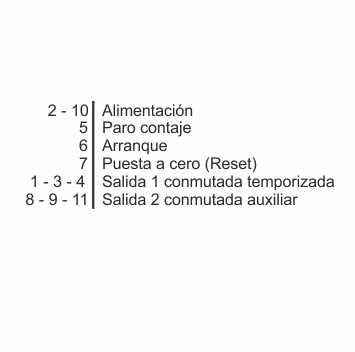

Connection	11-pin socket
Front	IP65
Material	Grey polycarbonate UL94-V0
Weight	≈ 170 g

Environmental conditions

Operating temperature	−10 to +55 °C
Storage temperature	−25 to +85 °C

Standards and certifications

Compliance

Working functions

Function	Description
A	On-delay
B	Interval on energising
C	Interval on energising / de-energising of the auxiliary contact
D	Interval on de-energising of the auxiliary contact
E	Symmetrical cyclic
F	Inverted symmetrical cyclic

Accessories

ZB11-0 · 11-pin socket for DIN rail · PG11 · 11-pin socket with rear screw · TBEU1E · 11-pin in-line socket · MA7248 · frame from 72 × 72 to 48 × 48 mm · MA9648 · frame from 96 × 96 to 48 × 48 mm · MA96D48 · frame from 96 × 48 to 48 × 48 mm
