XTDU2xx · SAFETY STEAM BOILERS



DIGITAL TIMER FOR BOILER SAFETY



XTD2xx digital boiler safety timers: fixed time of 120 min, 24, 48 or 72 h, with pre-warning output and TEST / RESET buttons.

Product type: Boiler safety timer
Installation: 48 × 48 mm panel, 11-pin socket
Function: Fixed time with programmable pre-warning output
Models: XTD212 · XTD224 · XTD248 · XTD272

Features

  • ✓Fixed, unchangeable main time: cannot be tampered with
  • ✓Programmable pre-warning output to avoid stopping the boiler
  • ✓Timed output that stops the boiler
  • ✓TEST button to check the operation and RESET for when the checks are made
  • ✓Time shown in decimal or hours:minutes format
  • ✓IP65 front and transformer supply
Supply
24 … 230 VAC · 12/24 VDC
Outputs
2 x SPDT 8A
Fixed time
120 min · 24 · 48 · 72 h
Format
48 × 48 · IP65

How it works

  1. 1When the unit is connected to the mains, a countdown of the model's fixed time starts.
  2. 2When the time reaches the programmed pre-warning time, the pre-warning output switches on for the selected time.
  3. 3If the check (RESET) is not made in time, at the end of the fixed time the timed output operates and stops the boiler.
  4. 4The TEST button checks the operation.

Frequently asked questions

Can the main time be changed?

No. The time is fixed and depends on the model: XTD212 120 min, XTD224 24 h, XTD248 48 h and XTD272 72 h.

What is the pre-warning for?

It warns before the fixed time ends, so the check can be made and the boiler does not stop.

Is there a version with plug-in connectors?

Yes, a C version with plug-in connectors: please ask.


General information

References XTD212 · XTD224 · XTD248 · XTD272  (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series X · 48 × 48 mm panel
Product type Digital boiler safety timer

Electrical specifications

Supply 24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Supply type Transformer (VAC)
Consumption 2.3 VA
Outputs 2 x SPDT 8A 250 VAC: timed and pre-warning
Control input Reset

Times and functions

Main time Fixed by model
Pre-warning Programmable, selectable pulse duration
Push-buttons TEST and RESET
Display Decimal or hours:minutes

Housing and mounting

Format 48 × 48 mm
Panel cut-out 45 × 45 mm
Fixing Snap-in bracket
Connection 11-pin socket
Front IP65
Material Grey polycarbonate UL94-V0
Weight ≈ 170 g

Environmental conditions

Operating temperature −10 to +55 °C
Storage temperature −25 to +85 °C

Standards and certifications

Compliance CE · 2014/35/EU · 2014/30/EU

Models and references

Reference Fixed time Outputs
XTD212 120 min Timed + pre-warning
XTD224 24 h Timed + pre-warning
XTD248 48 h Timed + pre-warning
XTD272 72 h Timed + pre-warning

Accessories

ZB11-0 · 11-pin socket for DIN rail  ·  PG11 · 11-pin socket with rear screw  ·  TBEU1E · 11-pin in-line socket  ·  MA7248 · frame from 72 × 72 to 48 × 48 mm  ·  MA9648 · frame from 96 × 96 to 48 × 48 mm  ·  MA96D48 · frame from 96 × 48 to 48 × 48 mm

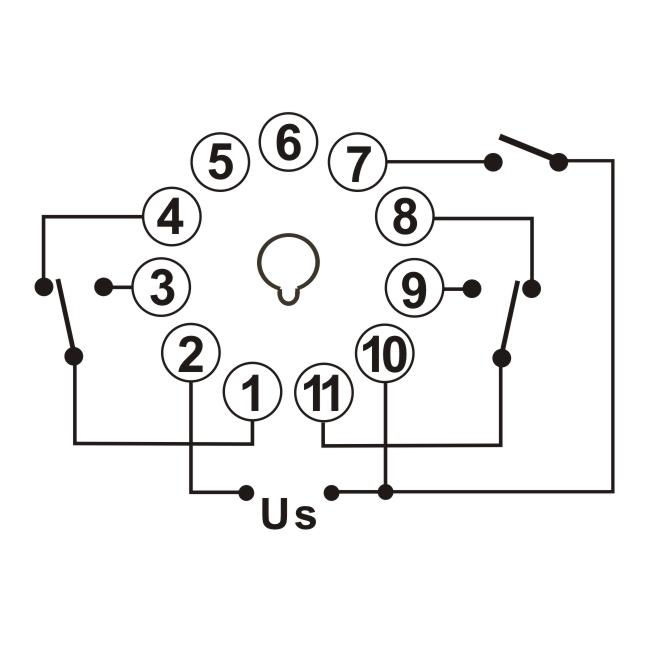

Wiring: function of each terminal

Terminal Function
2 - 10 Supply
7 Reset
1 - 3 - 4 Timed output
8 - 9 - 11 Pre-warning output

The detailed diagram is in the datasheet.
