XTDU421 · TIMER WITH 2 TIMES + PAUSE

2 TMER + PAUSE DIGITAL TIMER

Description
Especifications

XTDU421 double timing + pause digital timer: programmable T1, pause and T2, for reversing motor direction. 48 × 48 panel, IP65.

Product type:	Double timing digital timer with pause
Installation:	48 × 48 mm panel, 11-pin socket
Function:	T1 · pause · T2 · pause, cycling
Application:	Reversing direction with a pause for inertia

Features

✓Two times and one pause programmable from the keypad
✓Designed for reversing motor direction: the pause lets the motor stop by inertia
✓One output for T1 and another for T2
✓Independent ranges for T1, T2 and the pause, from 0.01 s to 99.9 h
✓The times are shown on the display during the cycle
✓With or without cycle memory after a power cut
✓Programming lock, IP65 front and transformer supply

Supply

24 … 230 VAC · 12/24 VDC

Outputs

2 x SPDT 8A

Times

0.01 s … 99.9 h

Format

48 × 48 · IP65

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

1When the start input closes (or on power-up if it is already closed) T1 starts and the TIMER 1 output switches on.
2At the end of T1 its output switches off and the pause starts.
3At the end of the pause the TIMER 2 output switches on for T2; then another pause follows and the cycle repeats.
4Without memory, after a power cut the cycle starts from zero; with memory, it continues where it was.

You may also be interested in

XTDU303Digital asymmetrical cyclic XTDU321Digital with 2 outputs XTDU102Long-range digital VETV02Star-delta starter

Frequently asked questions

What is the pause for?

When reversing direction, it lets the motor stop by inertia before starting in the opposite direction.

Are the three times programmed separately?

Yes: T1, T2 and the pause are programmed from the keypad, each with its own range.

What happens after a power cut?

Without memory the cycle starts again from zero; with memory it continues where it was.

General information

Reference	XTDU421 (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series	X · 48 × 48 mm panel
Product type	Double timing digital timer with pause

Electrical specifications

Supply	24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Supply type	Transformer (VAC)
Consumption	2.3 VA
Outputs	2 x SPDT 8A 250 VAC
Control inputs	Start · count stop · reset

Times and functions

Times	T1 · pause · T2, programmable from the keypad
Range	0.01 s to 99.9 h
Ranges	Independent for T1, T2 and pause · 0.01–9.99 · 0.1–99.9 · 1–999 (s, min, h)
Cycle memory	Selectable
Programming lock	Yes

Indications

Display

TIMER 1, TIMER 2 and pause during the cycle

Housing and mounting

Format	48 × 48 mm
Panel cut-out	45 × 45 mm
Fixing	Snap-in bracket

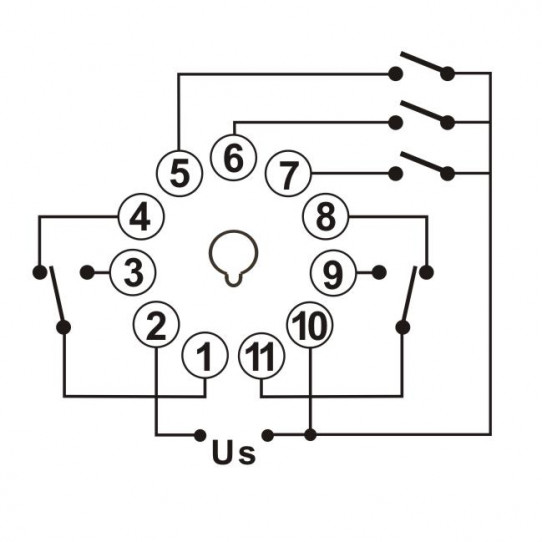

Connection	11-pin socket
Front	IP65
Material	Grey polycarbonate UL94-V0
Weight	≈ 170 g

Environmental conditions

Operating temperature	−10 to +55 °C
Storage temperature	−25 to +85 °C

Standards and certifications

Compliance

CE · 2014/35/EU · 2014/30/EU

Accessories

ZB11-0 · 11-pin socket for DIN rail · PG11 · 11-pin socket with rear screw · TBEU1E · 11-pin in-line socket · MA7248 · frame from 72 × 72 to 48 × 48 mm · MA9648 · frame from 96 × 96 to 48 × 48 mm · MA96D48 · frame from 96 × 48 to 48 × 48 mm
