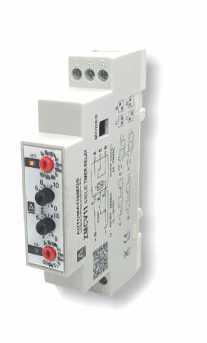

ZMCV11 · ASYMMETRICAL CYCLICAL, MULTIFUNCTION, MULTIVOLTAGE



CYCLICAL TIMER MULTIVOLTAGE, MULTIESCALE AND MULTIFUNCTION



ZMCV11 asymmetrical cyclic timer: independent ON and OFF times from 0.1 s to 10 days, 12 to 250 VAC and 12 to 32 VDC. 4 functions, 17.5 mm.

Product type: Asymmetrical cyclic timer
Installation: DIN rail, 1 module
Functions: 4 (A to D): 2 asymmetrical cyclic and 2 double timing
Applications: Irrigation, dosing and agitators

Features

  • ✓Two independent setpoints: ON time (T1) and OFF time (T2)
  • ✓10 time ranges: from 0.1 s to 10 days
  • ✓True multi-voltage: 12 to 250 VAC and 12 to 32 VDC
  • ✓2 cyclic modes and 2 single-cycle modes (double timing)
  • ✓Mode selection with side DIP switch
  • ✓Operation LEDs
  • ✓1-module housing (17.5 mm)
Supply
12…250 VAC · 12…32 VDC
Output
1 x SPDT 8A
Times
0.1 s … 10 days
Mounting
DIN rail · 17.5 mm

How it works

  1. 1With the unit de-energised, the mode is selected with the side DIP switch.

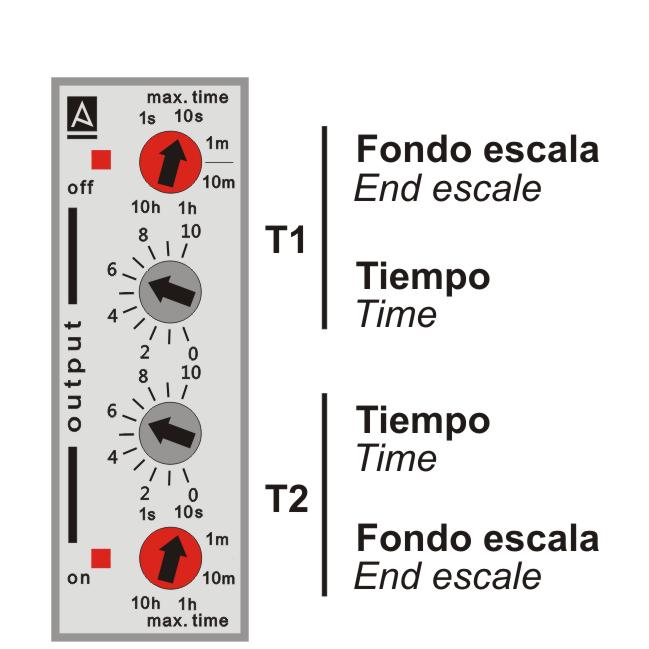

  2. 2Times T1 and T2 are set separately with their potentiometers.
  3. 3In modes A and B the output alternates ON and OFF continuously from power-up (B starts inverted).
  4. 4In modes C and D double timing starts when the Start input is energised (C) or de-energised (D).

Frequently asked questions

Can ON and OFF be set separately?

Yes. T1 and T2 are two independent setpoints, each with its own range, from 0.1 s to 10 days.

What is the Start input for?

It starts double timing in modes C (on energising) and D (on de-energising).

Which voltages does it accept?

From 12 to 250 VAC (50/60 Hz) and from 12 to 32 VDC, with the same reference.


General information

Reference ZMCV11  (12 … 250 VAC 50/60 Hz · 12 … 32 VDC)
Series Z · modular DIN rail 17.5 mm
Product type Multi-voltage asymmetrical cyclic timer

Electrical specifications

Supply 12 … 250 VAC 50/60 Hz · 12 … 32 VDC
Consumption 1.7 W
Output 1 x SPDT 8A 250 VAC
Control input Start (2-3), in modes C and D

Times

Setpoints T1 and T2 independent
Range 0.1 s to 10 days
Ranges 1 s · 10 s · 100 s · 1 min · 10 min · 100 min · 1 h · 10 h · 100 h · 10 days

Housing and mounting

Format 1 module · 17.5 × 90 × 58.5 mm
Mounting DIN rail
Material Grey polyamide PA6 · UL94-HB
Weight ≈ 72 g

Environmental conditions

Operating temperature −10 to +55 °C
Storage temperature −25 to +85 °C

Standards and certifications

Compliance CE

Working modes

Mode Operation
A Asymmetrical cyclic
B Inverted asymmetrical cyclic
C Double timing on energising the Start input
D Double timing on de-energising the Start input

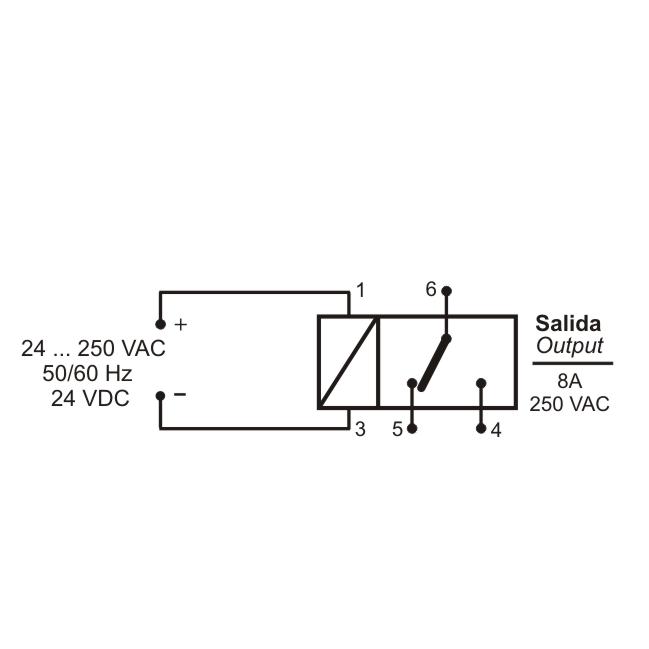

Wiring: function of each terminal

Terminal Function
1 Supply (with 3)
2 Start input (with 3)
3 Supply (with 1) and Start (with 2)
4 Changeover output (4-5-6)
5 Changeover output (4-5-6)
6 Changeover output (4-5-6)

The common and contacts of output 4-5-6 are shown in the datasheet diagram.
