XCEU602 / XCEC602 · COUNTER WITH 1 PRESELECTION

SINGLE PRESELECTION COUNTER

Description
Especifications

XCEU602 / XCEC602 single-preset pulse counter: two-colour display with preset and count always visible. 10 kHz, 48 × 48 panel.

Product type:	Single-preset pulse counter
Installation:	48 × 48 mm panel: 11-pin socket (U) or plug-in connectors (C)
Display:	8 digits in two colours: 4 preset and 4 count
Inputs:	A, B and reset (Z) · NPN or PNP

Features

✓Simple piece counter: preset and count always visible together
✓8-digit two-colour display
✓Counting up to 10 kHz or 30 Hz filter for mechanical contacts
✓Add / subtract and phase discrimination for encoders
✓12 VDC 50 mA supply for the sensor
✓NPN or PNP inputs selectable by DIP switch
✓IP65 front; U version with 11-pin socket or C version with connectors

Supply

24 … 230 VAC · 12/24 VDC

Output

1 x SPDT 8A

Count

9,999 (4 + 4) · 10 kHz

Format

48 × 48 · IP65

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

1With the unit de-energised, the options are selected with the side DIP switch: reset, polarity, output type, divider and filter.
2The preset is set from the front; the display shows it next to the count in another colour.
3When the counter reaches the preset the output switches on: latched, timed (0.2 to 2 s) or recycling the count.
4The front reset or input Z returns the count to zero or to the preset.

You may also be interested in

SCEU0111 preset with multiplier SCEU0151 preset with divider XLC4HReplacement for LC counters XCEU502Double preset, batch counter

Frequently asked questions

Can it count with an encoder?

Yes, it has a phase discrimination option for encoders and an add / subtract option with inputs A and B.

Does it count mechanical contacts without bounce?

Yes, with the 30 Hz filter enabled by DIP switch.

What is the difference between XCEU602 and XCEC602?

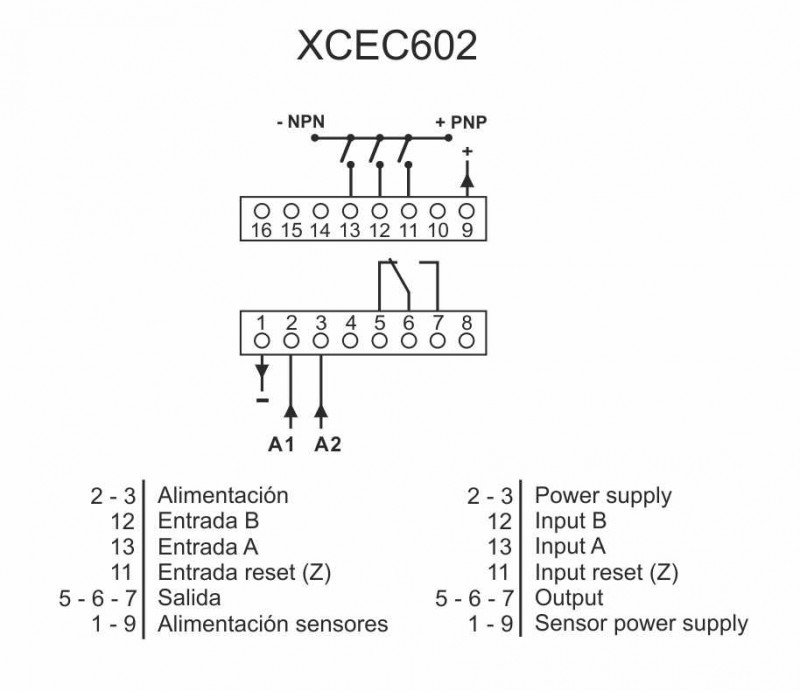

The same functions: the XCEU602 connects on an 11-pin socket and the XCEC602 has plug-in connectors.

General information

References	XCEU602 (11-pin socket) · XCEC602 (plug-in connectors) (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series	X · 48 × 48 mm panel
Product type	Single-preset pulse counter

Electrical specifications

Supply	24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Output	1 x SPDT 8A
Sensor supply	12 VDC 50 mA

Count

Capacity	9,999 (4 + 4 digits)
Speed	Up to 10 kHz · 30 Hz filter
Presets	1
Inputs	A, B and reset (Z) · NPN or PNP

Indications

Display

8-digit two-colour: preset and count

Housing and mounting

Format	48 × 48 mm
Panel cut-out	45 × 45 mm
Fixing	Snap-in bracket
Front	IP65

Working options

Function	Options (side DIP switch)
Divider	No divider or ÷ 10
Reset	To zero or to preset
Inputs	NPN or PNP
Output	Recycled (returns to start value) or not recycled
Output mode	Latched or timed
Output time	0.2 · 0.5 · 1 · 2 s
Encoder	Phase discrimination
Add / subtract	Input A adds, input B subtracts
Filter	30 Hz for mechanical contacts

Accessories

ZB11-0 · 11-pin socket for DIN rail · PG11 · 11-pin socket with rear screw · TBEU1E · 11-pin in-line socket · MA7248 · frame from 72 × 72 to 48 × 48 mm · MA9648 · frame from 96 × 96 to 48 × 48 mm · MA96D48 · frame from 96 × 48 to 48 × 48 mm
