SCEU015 · ONE PRE-SELECTION COUNTER WITH PROGRAMMABLE DIVIDER

SCEU015 single-preset counter with programmable divider from 1 to 99: every N pulses count as 1. Two-colour display, 5 kHz, 48 × 48.

Features

• ✓Divider programmable from 1 to 99: every N pulses count as 1 (encoders, toothed wheels)
• ✓Access to the divider can be locked by DIP switch
• ✓8-digit two-colour display
• ✓Counting up to 5 kHz or 30 Hz filter for mechanical contacts
• ✓Add / subtract and phase discrimination for encoders
• ✓12 VDC 50 mA supply for the sensor
• ✓NPN or PNP inputs selectable by DIP switch
• ✓IP65 front and 11-pin socket

Documentation

How it works

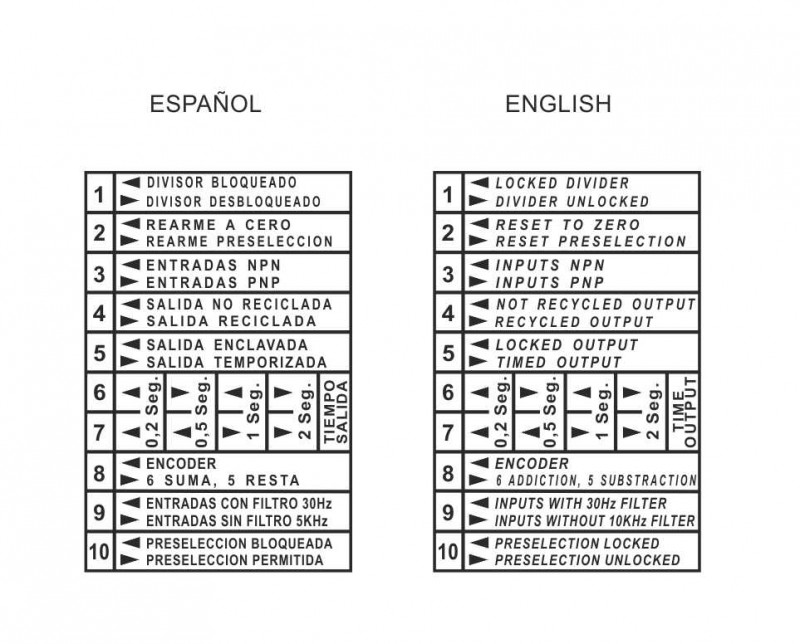

1. 1With the unit de-energised, the options are selected with the side DIP switch: reset, polarity, output type, filter and divider lock.
2. 2Holding FAST for 5 s, the divider (1 to 99) is programmed with + and −.
3. 3The preset is set from the front; the display shows it next to the count in another colour.
4. 4When the counter reaches the preset the output switches on: latched, timed (0.2 to 2 s) or recycling the count.
5. 5The front reset or input Z returns the count to zero or to the preset.
