XCEU502 / XCEC502 · DOUBLE PRESELECTION COUNTER

DOUBLE PRESELECTION COUNTER

Description
Especifications

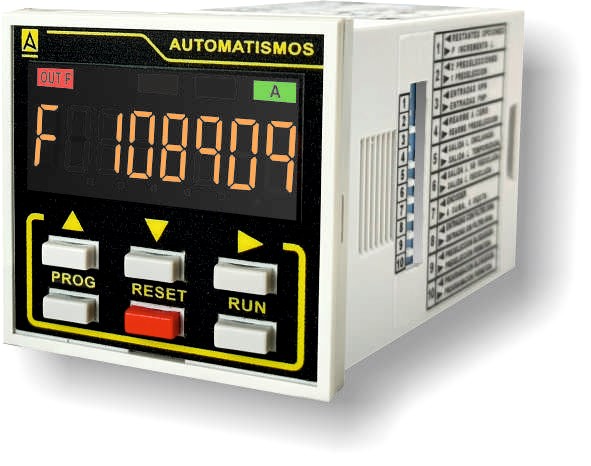

XCEU502 / XCEC502 digital counter with 1 or 2 presets: up to 9,999,999 pulses at 10 kHz, batch counter and 2 outputs. 48 × 48 panel.

Product type:	Digital preset counter
Installation:	48 × 48 mm panel: 11-pin socket (U) or plug-in connectors (C)
Presets:	1 or 2
Inputs:	A, B and reset (Z) · NPN or PNP

Features

✓One or two presets, with an output for each
✓Batch counter function: the first count increments the second
✓Counting up to 9,999,999 at 10 kHz
✓NPN or PNP inputs selectable by DIP switch
✓12 VDC 50 mA supply for the sensor, with OVERLOAD warning
✓Reset to zero or to preset; latched or timed output
✓IP65 front; U version with 11-pin socket or C version with connectors

Supply

24 … 230 VAC · 12/24 VDC

Outputs

SPDT + SPST · 8 A

Count

9,999,999 · 10 kHz

Format

48 × 48 · IP65

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

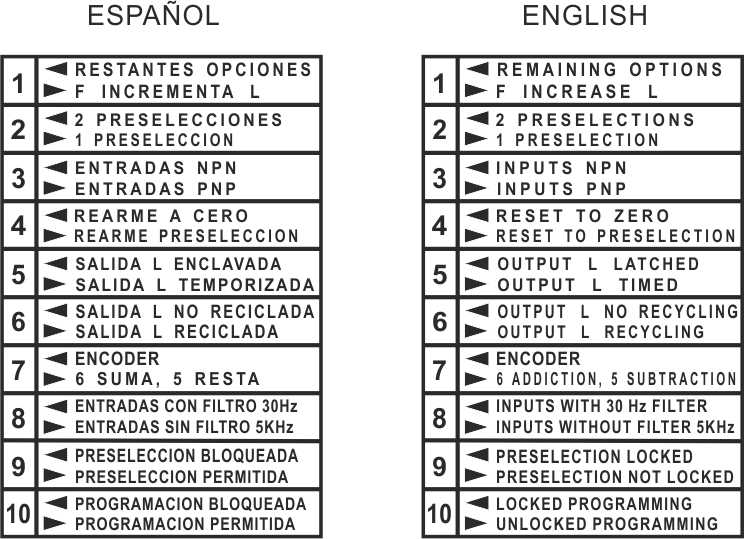

1With the unit de-energised, the function and input polarity are selected with the side DIP switch.
2The preset or both presets are programmed with the PROG key.
3When the count reaches a preset its output (F or L) switches on, latched or timed according to the DIP switch.
4In batch counter mode, each time F is reached one is added to the second counter; when L is reached its output switches on.

You may also be interested in

XCEU522Double preset + scale factor XCEU6021 preset, two-colour display XLC4HReplacement for LC counters SCEU029Edge counter with scale factor

Frequently asked questions

Does it need a power supply for the sensor?

No. It has a 12 VDC 50 mA supply on terminals 1 (+) and 3 (−) of the XCEU502; if the load is exceeded OVERLOAD is shown.

What is the batch counter function?

It works as two chained counters: when the first preset (F) is reached, one is added to the second (L) and the first returns to zero.

What is the difference between XCEU502 and XCEC502?

The same functions: the XCEU502 connects on an 11-pin socket and the XCEC502 has plug-in connectors.

General information

References	XCEU502 (11-pin socket) · XCEC502 (plug-in connectors) (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Replaces	XCEU512 · XCEC512
Series	X · 48 × 48 mm panel
Product type	Digital preset counter

Electrical specifications

Supply	24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Consumption	2.3 VA
Outputs	1 x SPDT + 1 x SPST · 8A 250 VAC
Sensor supply	12 VDC 50 mA

Count

Capacity	Up to 9,999,999
Speed	Up to 10 kHz
Presets	1 or 2
Inputs	A, B and reset (Z) · NPN or PNP by DIP switch
Reset	To zero or to preset
Output L	Latched or timed

Housing and mounting

Format	48 × 48 mm
Panel cut-out	45 × 45 mm
Fixing	Snap-in bracket
Front	IP65
Material	Grey polycarbonate UL94-V0
Weight	≈ 170 g

Environmental conditions

Operating temperature	−10 to +55 °C
Storage temperature	−25 to +85 °C

Standards and certifications

Compliance

CE · 2014/30/EU · 2014/35/EU

Accessories

ZB11-0 · 11-pin socket for DIN rail · PG11 · 11-pin socket with rear screw · TBEU1E · 11-pin in-line socket · MA7248 · frame from 72 × 72 to 48 × 48 mm · MA9648 · frame from 96 × 96 to 48 × 48 mm · MA96D48 · frame from 96 × 48 to 48 × 48 mm

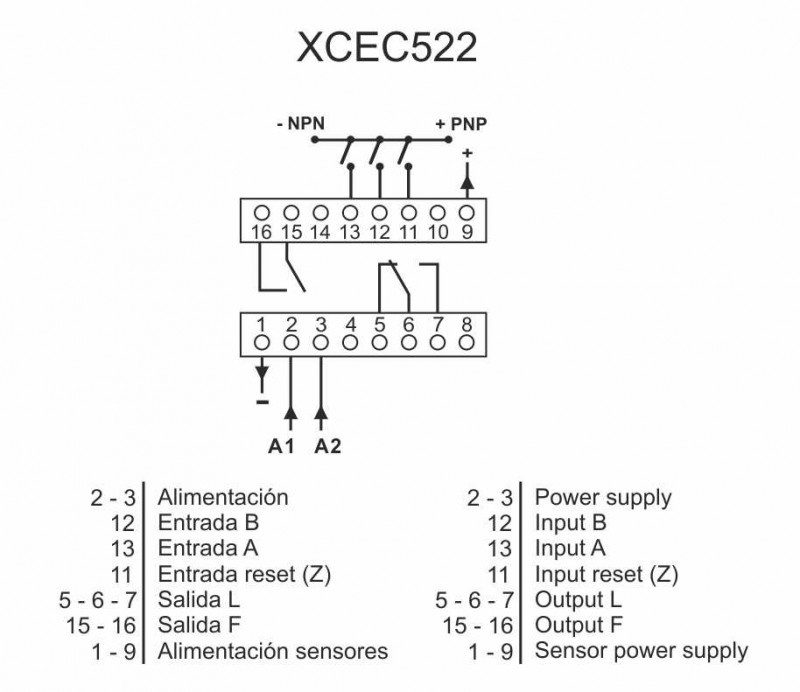

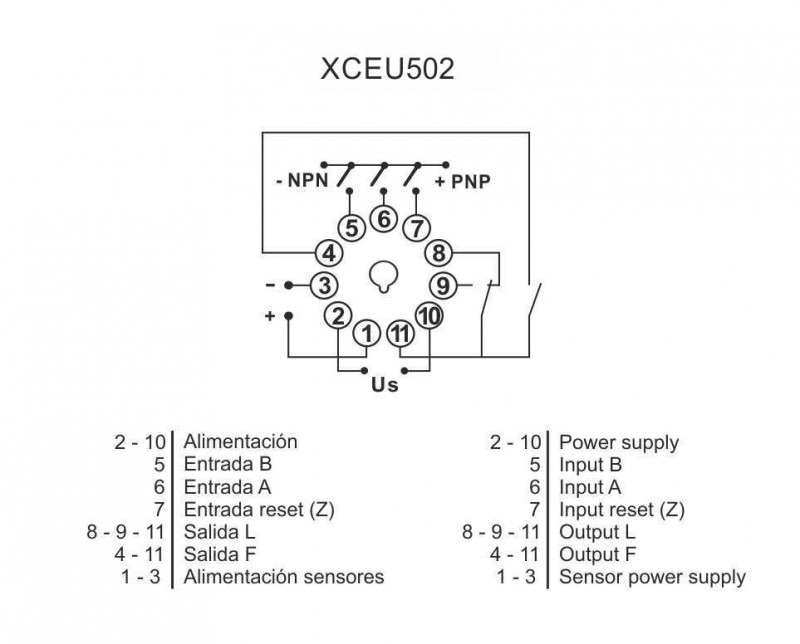

Wiring: function of each terminal

Function	XCEU502 (11-pin)	XCEC502 (connectors)
Supply	2 - 10	2 - 3
Input B	5	12
Input A	6	13
Reset input (Z)	7	11
Output L	8 - 9 - 11	5 - 6 - 7
Output F	4 - 11	15 - 16
Sensor supply	1 (+) - 3 (−)	1 - 9
