XVEU070 · RESET TOTALIZER

XVEU070 8-digit pulse totaliser with front reset: accumulated count up to 99,999,999 at 5 kHz and reset from the front.

Features

• ✓8-digit accumulated count of pieces or pulses
• ✓Counting speed up to 5 kHz or 30 Hz for mechanical contacts
• ✓Add / subtract: input A (6) adds and input B (5) subtracts
• ✓Phase discrimination for encoders
• ✓NPN or PNP inputs selectable by DIP switch
• ✓12 VDC 50 mA supply for the sensor
• ✓Reset from the front or by external input; the front reset can be disabled by DIP switch

Documentation

How it works

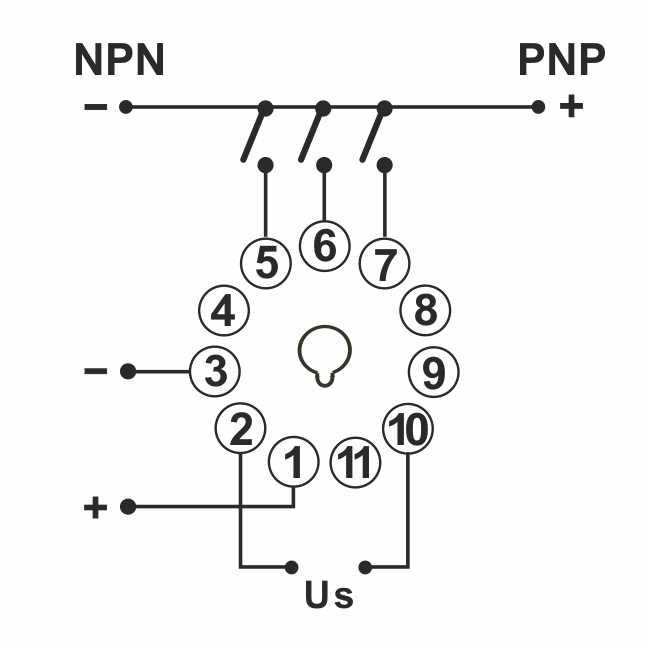

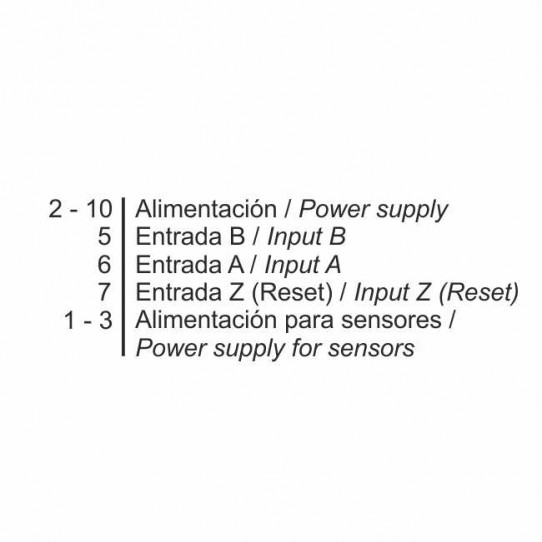

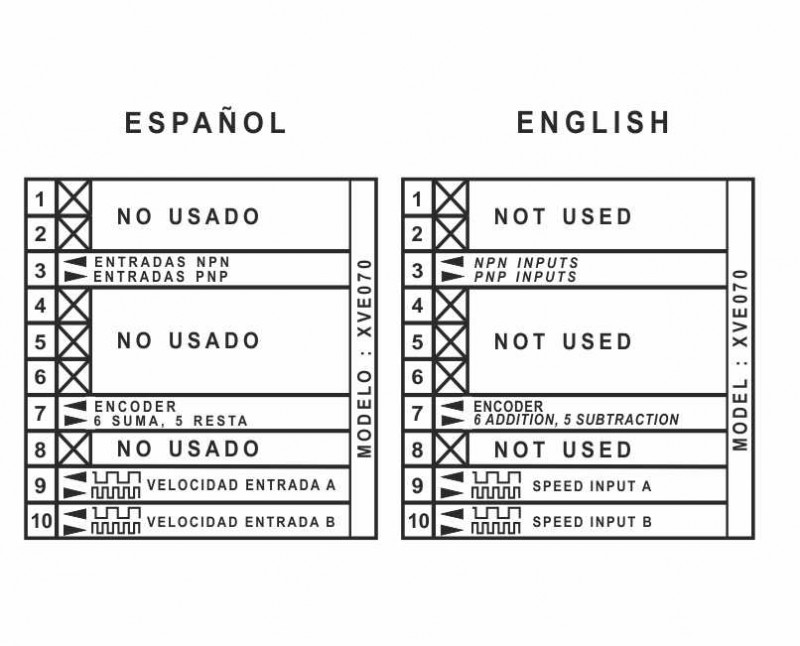

1. 1With the unit de-energised, the polarity, mode (add / subtract or encoder) and input speed are selected with the side DIP switch.
2. 2Each pulse on input A adds one to the count; each pulse on input B subtracts one.
3. 3With an encoder, the direction is detected from the phase of the two signals.
4. 4The count is reset with the front reset key or the external input.
