XVEU080 · TOTALIZER WITH PARTIAL + TOTAL COUNTER

TOTALIZER WITH PARTIAL + TOTAL COUNTER

Description
Especifications

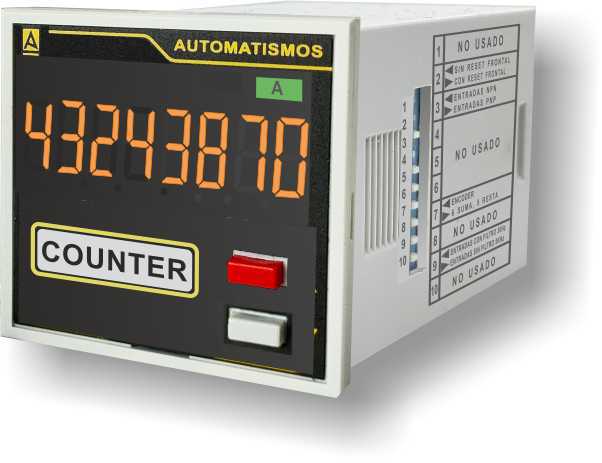

XVEU080 8-digit totalising counter: partial and total count, up to 5 kHz, NPN or PNP inputs and sensor supply. 48 × 48 panel.

Product type:	Totalising counter without outputs
Installation:	48 × 48 mm panel, 11-pin socket
Counting:	Partial and total
Modes:	Add on A and subtract on B, or encoder

Features

✓8-digit digital totaliser with partial and total count
✓Counting speed up to 5 kHz, or 30 Hz filter for contacts
✓NPN or PNP inputs selected with the side DIP switch
✓Encoder mode with phase discrimination, or add on input A and subtract on input B
✓Front reset that can be disabled by DIP
✓12 VDC 50 mA sensor supply

Supply

24…230 VAC · 12/24 VDC

Counting

8 digits · up to 5 kHz

Inputs

NPN or PNP

Format

48 × 48 mm panel

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

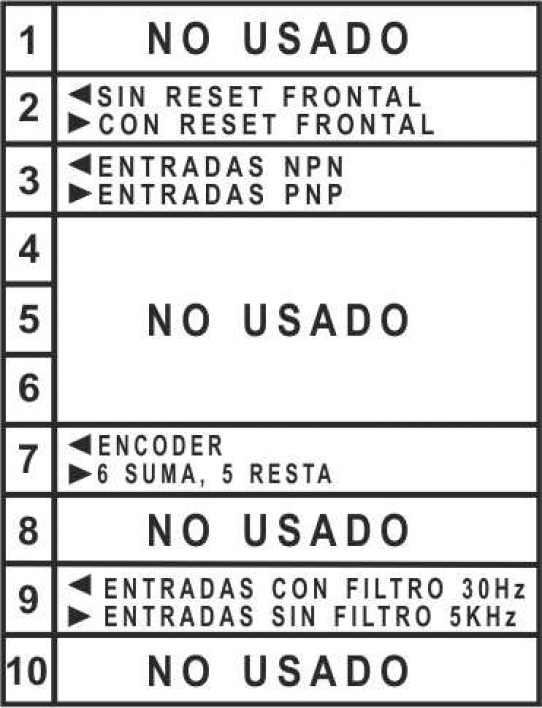

1The NPN or PNP polarity, the mode (encoder or add / subtract), the speed and whether the front reset is active are selected with the side DIP switch, with the unit powered off.
2Pulses on input A add and pulses on input B subtract; in encoder mode, the unit detects the direction of rotation.
3The display shows the partial count. Holding the white key shows the total.
4The partial count is reset with the reset key or the reset input (Z).

You may also be interested in

XVEU050Pulse display XVEU060Display XVEU070Display XCEU502Double preset counter

Frequently asked questions

Does it have outputs?

No. It is a display totaliser, without contact outputs.

How is the total shown?

By holding the white key on the front. When released, it returns to the partial count.

Which sensors does it accept?

NPN or PNP sensors, selected by DIP, and encoders. It has a 12 VDC 50 mA supply to power them.

General information

Reference	XVEU080 (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series	X · 48 × 48 mm panel
Product type	Totalising counter

Electrical specifications

Supply	24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Consumption	2.3 VA
Sensor supply	12 VDC · maximum 50 mA
Outputs	No outputs

Counting

Digits	8
Counters	Partial and total
Speed	Up to 5 kHz · with filter, up to 30 Hz

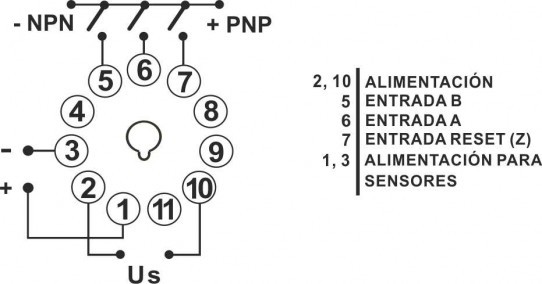

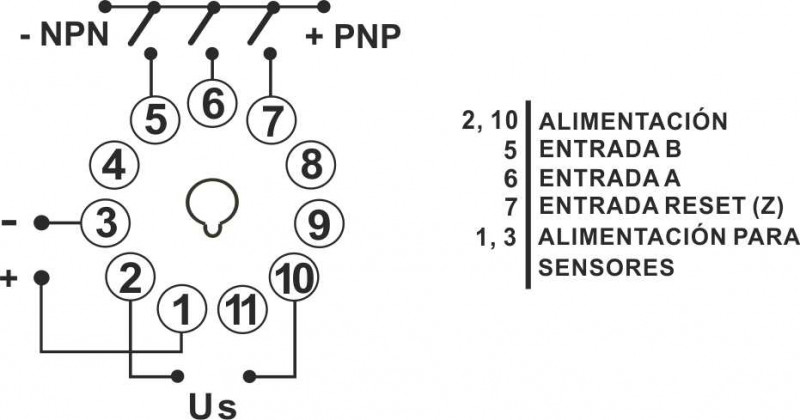

Inputs	A, B and reset (Z) · NPN or PNP by DIP
Modes	Encoder (phase discrimination) · A adds, B subtracts
Front reset	Enabled or disabled by DIP

Housing and mounting

Format	48 × 48 mm
Panel cut-out	45 × 45 mm
Fixing	Snap-in bracket
Connection	11-pin socket
Material	Grey polycarbonate UL94-V0
Weight	≈ 170 g

Environmental conditions

Operating temperature	−10 to +55 °C
Storage temperature	−25 to +85 °C

Standards and certifications

Compliance

CE · 2014/35/EU · 2014/30/EU

Accessories

ZB11-0 · 11-pin socket for DIN rail · PG11 · 11-pin socket with rear screw · TBEU1E · 11-pin in-line socket · MA7248 · frame from 72 × 72 to 48 × 48 mm · MA9648 · frame from 96 × 96 to 48 × 48 mm · MA96D48 · frame from 96 × 48 to 48 × 48 mm
