ZCIx3xx · MAXIMUM AND MINIMUM CURRENT INTENSITY

INTENSITY CONTROL FOR MAXIMUM AND MINIMUM CURRENT

Description
Especifications

ZCIx3xx maximum and minimum current control relay with built-in toroid: 5, 10 and 20 A ranges, block or enable control input.

Product type:	Maximum and minimum current control relay
Installation:	DIN rail, 1 module
Measurement:	Built-in toroid: one phase is passed through the hole
Application:	Motor without load, supply failure or overload

Features

✓Monitors a working range: switches the output off below the minimum or above the maximum
✓Built-in toroid: no external current transformer
✓0 to 5, 0 to 10 and 0 to 20 A ranges depending on reference

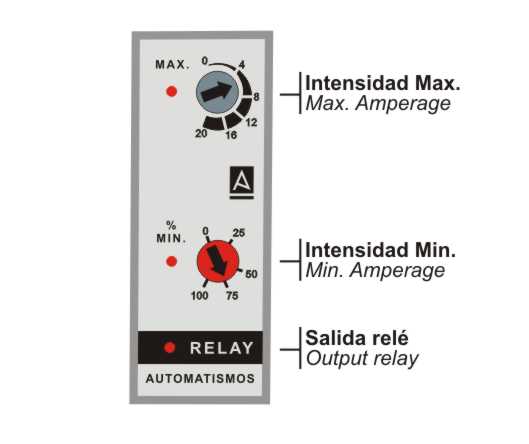

✓Front potentiometer setting
✓Versions without control input (V), with block (B) or with enable (P)
✓Detection and output status LEDs
✓Only 17.5 mm of DIN rail

Supply

230 VAC or 24 VAC/VDC

Output

1 x SPDT 8A

Range

0–5 · 0–10 · 0–20 A

Format

1 DIN module · 17.5 mm

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

1One phase of the supply of the system to be monitored is passed through the hole on the side of the unit.
2With no current, the output is off and the minimum LED is on.
3When the current reaches the set minimum, the minimum LED goes off and the output switches on. The minimum is set as a percentage of the maximum.
4If the current exceeds the set maximum, the output switches off and the maximum LED lights up.

You may also be interested in

ZCIx4xxMinimum current ZCIx5xxMaximum current MCIV02Current control with display ZCFF01Phase sequence and failure

Frequently asked questions

Does it need a current transformer?

No. The toroid is built in: just pass one phase through the hole on the side.

How is the reference read?

ZCI + control input (V none, B block, P enable) + function (3: maximum and minimum) + range (05, 10 or 20 A). For example, ZCIB310: with block, 0 to 10 A.

Which supply does it use?

230 VAC or 24 VAC/VDC. It must be stated in the order.

General information

Reference	ZCIx3xx (230 VAC or 24 VAC/VDC)
No control input (V)	ZCIV305 · ZCIV310 · ZCIV320
Block (B)	ZCIB305 · ZCIB310 · ZCIB320
Enable (P)	ZCIP305 · ZCIP310 · ZCIP320
Series	Z · DIN rail
Function	3 · Maximum and minimum

Electrical specifications

Supply	230 VAC or 24 VAC/VDC (state in the order)
Consumption	1.7 W
Output	1 x SPDT 8A 250 VAC

Measurement and setting

Measurement	Built-in toroid
Ranges	0 – 5 A · 0 – 10 A · 0 – 20 A
Setting	Maximum and minimum setting (minimum as % of maximum) with front potentiometer
Control input	Block or enable, depending on model

Indications

LEDs	Detection and output status

Housing and mounting

Format	1 DIN module · 17.5 × 90 × 58.5 mm
Fixing	35 mm rail (EN 60715)
Material	Grey polyamide PA6 UL94-HB
Weight	≈ 72 g

Environmental conditions

Operating temperature	−10 to +55 °C
Storage temperature	−25 to +85 °C

Standards and certifications

Compliance

CE · 2014/35/EU · 2014/30/EU

Wiring: function of each terminal

Terminals	Function
1 - 3	Supply
2 - 3	Control input
4 - 5 - 6	Changeover output

The wiring diagram can be enlarged in the images below the photo.
