ZCFF01 · SEQUENCE AND PHASE FAILURE

SECUENCE CONTROL AND PHASE FAILURE

Description
Especifications

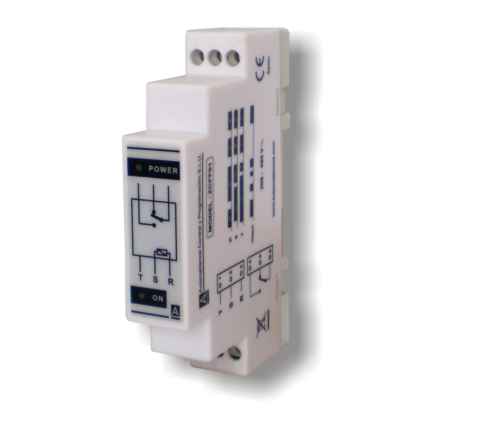

ZCFF01 phase sequence and phase failure relay without delay: protects three-phase motors against reversal or phase loss. Self-powered.

Product type:	Phase sequence and phase failure relay
Installation:	DIN rail, 1 module
Supply:	From the monitored phases themselves
Delay:	No delay

Features

✓Detects phase sequence reversal and phase loss
✓Self-powered from the monitored phases: no auxiliary supply or neutral
✓Detects regenerated phases up to 85 % of the rated voltage
✓Acts without delay when a fault is detected
✓1 x SPDT 8A
✓Only 17.5 mm of DIN rail

Supply

205…480 VAC (phases)

Output

1 x SPDT 8A

Delay

No delay

Format

1 DIN module · 17.5 mm

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

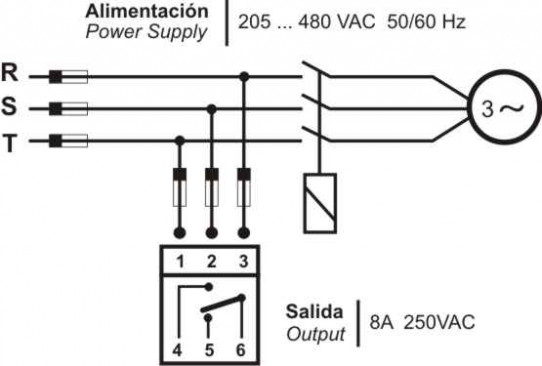

1The three phases of the line feeding the motor are connected: the unit is powered from them, between 205 and 480 VAC.
2With all phases present and in the correct sequence, the output allows operation.
3On phase reversal or phase loss, the output cuts off operation without delay.
4This prevents a three-phase motor from running backwards or starting on two phases.

You may also be interested in

ZCFF02APhase sequence and failure · 0.5 s delay ZCFF02BPhase sequence and failure · 1 s delay MVT101Three-phase voltmeter with alarms ZCIx5xxMaximum current control

Frequently asked questions

Does it need an auxiliary supply?

No. It is powered from the monitored phases themselves, from 205 to 480 VAC, without neutral.

Does it detect a regenerated phase?

Yes, it detects regenerated phases up to 85 % of the rated voltage.

What is the difference between ZCFF01, ZCFF02A and ZCFF02B?

The operation delay when a fault is detected: the ZCFF01 acts without delay, the ZCFF02A after 0.5 s and the ZCFF02B after 1 s. The delay avoids tripping on micro-interruptions.
