LEVEL PROBES

Description
Especifications

Conductive probes and float switches for level relays: sets of 3 stainless probes with cable, probe for cable and floats for wells and tanks.

Product type:	Conductive probes and level float switches
Use:	Probe level relays and float level control
Application:	Wells, tanks, cisterns and pits

Features

✓SNP003 set: the 3 probes of a level relay (maximum, minimum and common) with their cable
✓Cables of different colour and length: the common probe is the longest
✓304 stainless steel core
✓SNT003 with cable in several lengths, up to 8 m
✓16 A float switches with 2 to 10 m cable, pear type or with counterweight
✓SNB001 for small tanks and electronic equipment

Probes

Conductive · 304 stainless

Float switches

230/240 VAC · 16 A

Float protection

IP68

Cable

From 1.5 to 10 m

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

1The probes hang in the well or tank at the height of each level.
2The common probe is the longest and goes to the bottom; the minimum and maximum probes set the working band.
3The conductivity of the water closes the circuit between probes and the level relay detects it with a safe voltage.
4Float switches, instead, open or close their contact as they tilt with the water level.

You may also be interested in

TNS020Level relay well or tank TNDG20Level relay well and tank YNS040Level relay on DIN rail MNDP02Multifunction level, 7 modes

Frequently asked questions

Which probes does a level relay need?

One set of 3 conductive probes per container: maximum, minimum and common, for example the SNP003. Well-and-tank relays need two sets.

Probe or float switch?

With conductive water, a level relay with SNP003 probes (or SNT003 with custom cable). For deep wells and pits, a float with counterweight SNC0xx; for tanks, a pear-type float SNP0xx.

What is the SNB001 for?

For small tanks and electronic equipment: its contact is rated 0.5 A.

Conductive probes

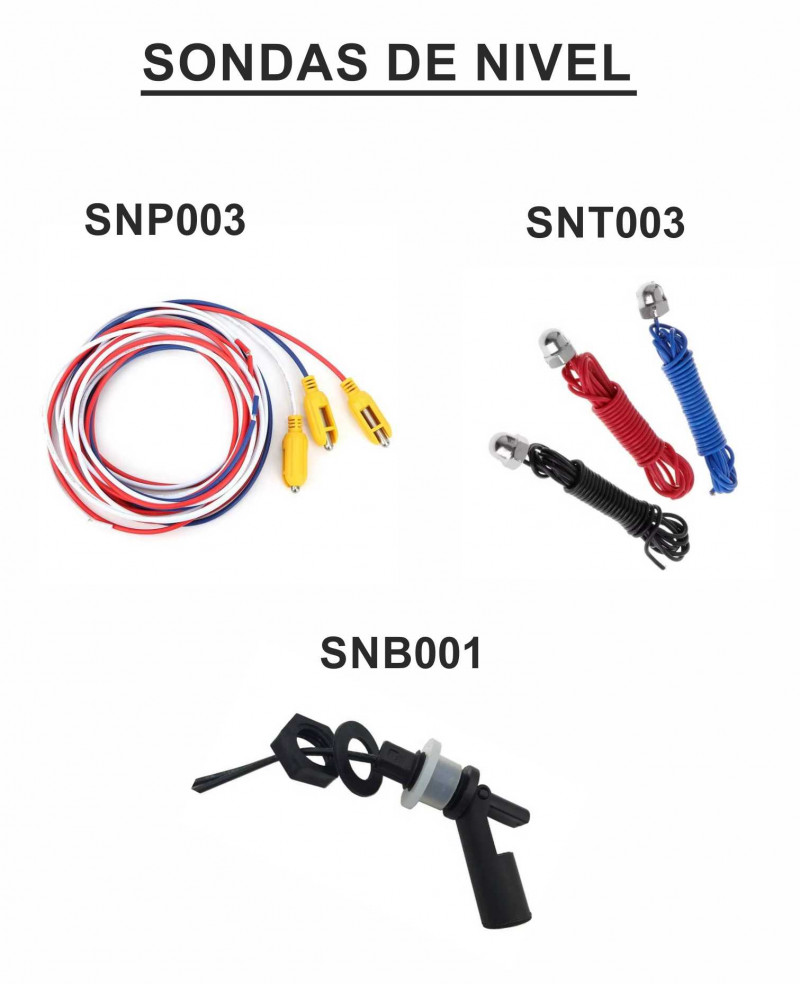

SNP003	Set of 3 · plastic and 304 stainless · red 1.5 m, white 2.5 m and blue 3.5 m cables
SNT003	304 stainless steel · black, red and blue cables · 1.5 · 2 · 3.5 · 5 · 8 m
SNS010	Probe for cable · plastic and stainless steel · connection on the bolt

Level float switches

Pear type	SNP020 · SNP030 · SNP050 · SNP100
With counterweight	SNC020 · SNC030 · SNC050 · SNC100
Supply	230/240 VAC 50/60 Hz
Contact	16 A
Protection	IP68
Cable	2 · 3 · 5 · 10 m

Tank float switch SNB001

Contact rating	10 W
Max. switching voltage	100 VDC
Max. switching current	0.5 A
Contact resistance	100 mΩ
Temperature	−10 to +85 °C

Models and references

Reference	Type	Features	Cable
SNS010	Conductive probe for cable	Plastic cover · stainless steel core · direct connection on the bolt	No cable
SNP003	Set of 3 conductive probes	Plastic cover · 304 stainless core · red, white and blue cables	1.5 / 2.5 / 3.5 m
SNT003	Stainless probe set	304 stainless steel · black, red and blue cables	1.5 · 2 · 3.5 · 5 · 8 m
SNP020 · SNP030 · SNP050 · SNP100	Pear-type float switch	230/240 VAC 50/60 Hz · IP68 · 16 A	2 · 3 · 5 · 10 m
SNC020 · SNC030 · SNC050 · SNC100	Float switch with counterweight	230/240 VAC 50/60 Hz · IP68 · 16 A	2 · 3 · 5 · 10 m
SNB001	Float switch for tanks	10 W · 100 VDC max. · 0.5 A · 100 mΩ · −10 to +85 °C	With cable
