MTDS04 4-OUTPUT SEQUENCER, MULTIPLE TIMER

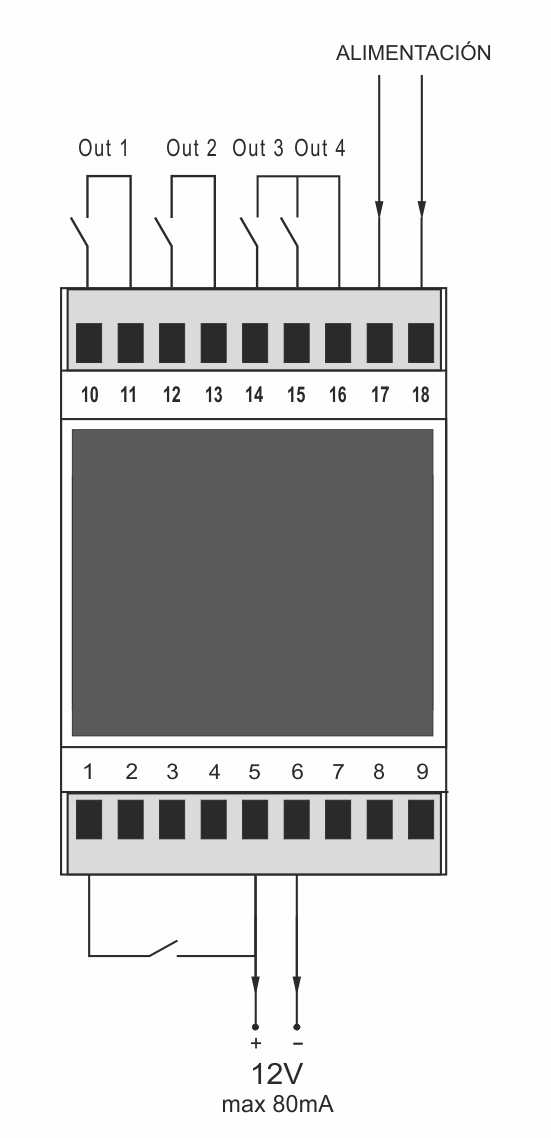

CONNECTIONS SCHEME

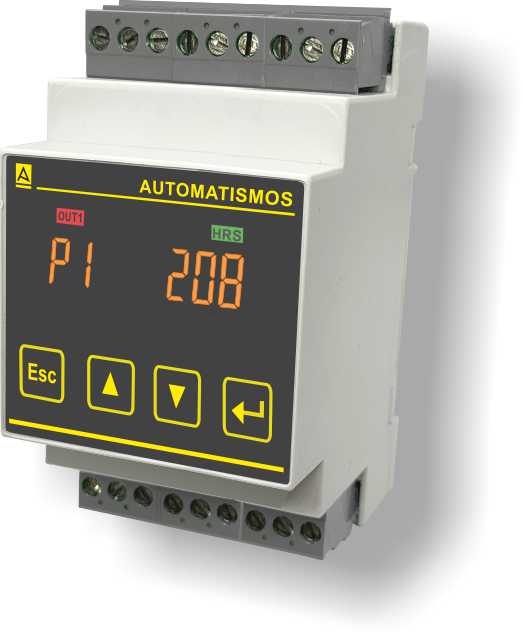

4-OUTPUT SEQUENCER, MULTIPLE TIMER



4-Output Sequencer, Multiple Timer
4 timers plus 4 pauses chained together
Cyclical and single-cycle functions
Timing programmed in minutes or seconds
Pause programmed in seconds
8 presets, 4 times and 4 pauses
4 outputs and 1 start input
12VDC 80mA output for sensor power supply
3-module enclosure (52.5 mm)

Supply voltage ... 12 - 24 VDC ;  100 - 240 VAC
Output contacts .... Max. 8A 250 VAC
Format .... 62,5 x 90 x 52,5 mm
Fixing on panel .... 35 mm track (EN60715)
