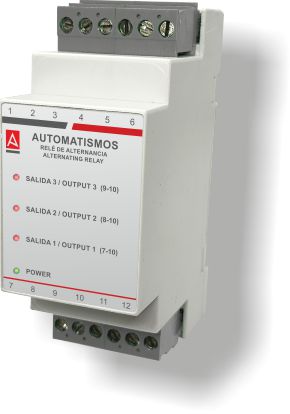

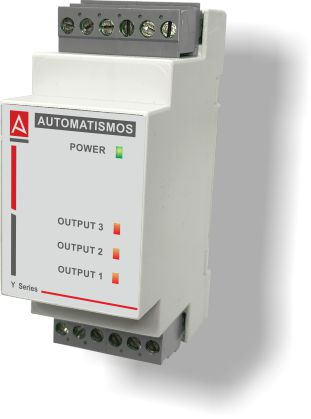

YRA006 ALTERNATING RELAY FOR THREE MOTORS (PLUG-IN CONNECTORS)

ALTERNATING RELAY FOR THREE MOTORS (PLUG-IN CONNECTORS)

Description
Especifications

Alternating relay for three motors.
Possibility of keeping the three outputs activated at the same time.
3 optocoupled inputs for external control.
Output status indication.
Plug-in connectors.

Power supply .... 12 VDC; 24 VDC; 24 VAC; 48 VAC; 110 VAC; 230 VAC; 380 VAC
Output contacts .... 10A 250 VAC
Connection .... Plug-in connectors
Format .... 90 x 62.5 x 35 mm
