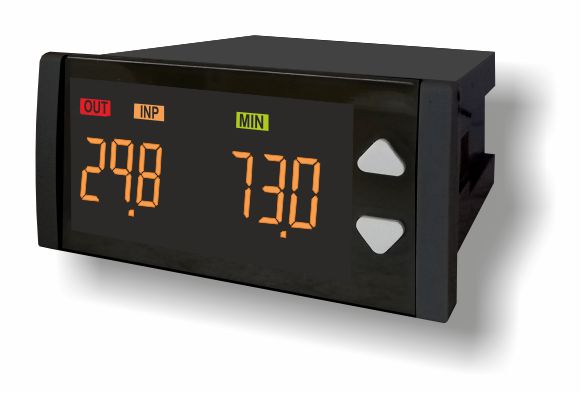

PMM302 · MULTIFUNCTION TIMER



MULTIFUNCTION TIMER



PMM302 multifunction timer: 10 functions, from 0.1 s to 999 h, 1 optocoupled control input and 1 x SPDT 5A. DIN rail or wall, 72 × 36 mm.

Product type: Multifunction digital timer
Installation: DIN rail or wall · 72 × 36 mm
Functions: 10: A to J
Inputs: 1 optocoupled control input

Features

  • ✓10 operating functions, from on-delay to a 500 ms pulse generator
  • ✓Time range from 0.1 s to 999 h with 6 ranges
  • ✓Simultaneous display of preset (PRESET) and time (RUN)
  • ✓1 optocoupled control input
  • ✓Output 1 x SPDT 5A 250 VAC
  • ✓DIN rail or wall mounting
Supply
85 – 230 VAC · 24 VAC/DC
Output
1 x SPDT 5A
Times
0.1 s … 999 h
Mounting
DIN rail or wall

How it works

  1. 1Programming is entered by powering up with both keys pressed; «ProG» appears on the display.
  2. 2The time range (0.1 s, 1 s, 0.1 min, 1 min, 0.1 h or 1 h) is selected and confirmed.
  3. 3The function (A to J) is selected and confirmed: the unit is ready.
  4. 4The preset is set with the keys; the cycle starts when the input signal is received.

Frequently asked questions

Which functions does it have?

Ten: A on-delay · B interval on start · C interval on start / stop · D interval on stop · E symmetrical cycle · F inverted symmetrical cycle · G off-delay · H on-delay / interval on stop · I timed bistable (with T = 0, bistable only) · J 500 ms pulse generator.

How many inputs does it have?

One optocoupled control input.

Which ranges does it have?

0.1 s, 1 s, 0.1 min, 1 min, 0.1 h and 1 h, for times from 0.1 s to 999 h.


General information

Reference PMM302  (85 – 230 VAC · 24 VAC/DC)
Series P · 72 × 36 mm
Product type Multifunction digital timer

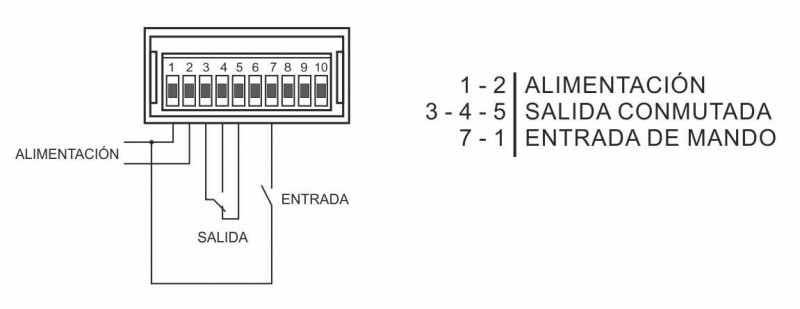

Electrical specifications

Supply 85 – 230 VAC · 24 VAC/DC
Consumption 2 W
Output 1 x SPDT 5A 250 VAC
Input 1 optocoupled control input

Times and functions

Functions A on-delay · B interval on start · C interval on start / stop · D interval on stop · E symmetrical cycle · F inverted symmetrical cycle · G off-delay · H on-delay / interval on stop · I timed bistable (with T = 0, bistable only) · J 500 ms pulse generator
Ranges 0.1 s · 1 s · 0.1 min · 1 min · 0.1 h · 1 h
Range 0.1 s … 999 h

Indications

Display Preset (PRESET) and time (RUN)
LEDs OUT, INP and range (HRS · MIN · SEC)

Housing and mounting

Format 72 × 36 × 85 mm
Fixing DIN rail or wall
Material Black ABS UL94-HB
Weight ≈ 130 g

Environmental conditions

Operating temperature −10 to +55 °C
Storage temperature −25 to +85 °C

Standards and certifications

Compliance CE · 2014/35/EU · 2014/30/EU
