XLT4HC / XLT4HU · MULTIFUNCTION TIMER

MULTIFUNCTION TIMER (SUBSTITUTE FOR LT4H MODELS)

Description
Especifications

XLT4HU / XLT4HC digital timer: 8 functions and 8 ranges, from 0.001 s to 9999 h, with keypad lock. Replaces LT timers of other brands.

Product type:	Digital multifunction timer
Installation:	48 × 48 mm panel: 11-pin socket (U) or plug-in connectors (C)
Functions:	8 (A, A2, B to G)
Inputs:	PNP or NPN

Features

✓Replaces LT timers of other brands
✓8 working functions and 8 time ranges, from 0.001 s to 9999 h
✓Up or down timing
✓Front keypad lock: the setting stays protected on the shop floor
✓Setpoint and elapsed time visible together
✓PNP or NPN inputs
✓Memory after a power cut, IP65 front and transformer supply

Supply

24 … 230 VAC · 12/24 VDC

Output

1 x SPDT 8A

Times

0.001 s … 9999 h

Format

48 × 48 · IP65

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

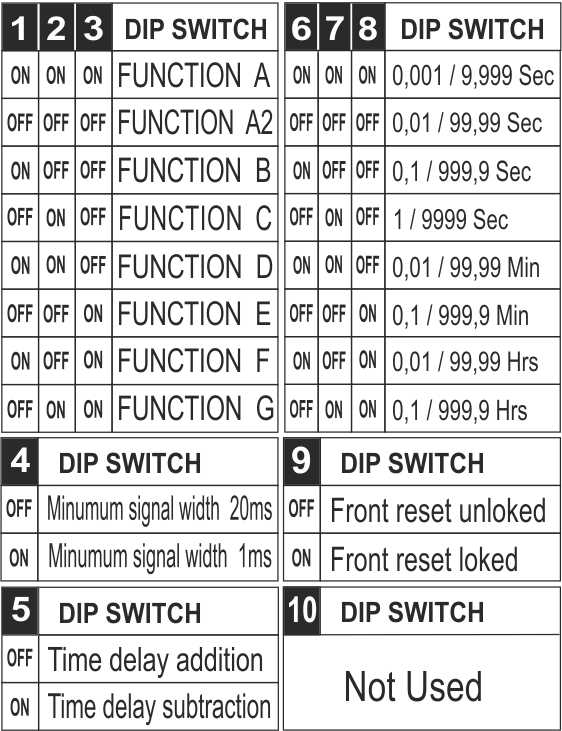

1With the unit de-energised, the time range and function are selected with the side DIP switch.
2The time is preset from the front keypad.
3The display shows the setpoint and the elapsed time together, counting up or down.
4With the keypad lock on, nobody can change the setting from the front.

You may also be interested in

XLC4HCounter replacing LC models XTDU309Digital with programming lock XTDU102Long-range digital XTDU316High-speed digital

Frequently asked questions

Can it replace an LT timer of another brand?

Yes, the XLT4H is designed to replace LT timers of other brands in 48 × 48 format.

What is the difference between XLT4HU and XLT4HC?

The same functions: the XLT4HU connects on an 11-pin socket and the XLT4HC has plug-in connectors.

Can the keypad be locked?

Yes, the front keypad can be locked so that the setting is not changed.

General information

References	XLT4HU (11-pin socket) · XLT4HC (plug-in connectors) (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series	X · 48 × 48 mm panel
Product type	Digital multifunction timer

Electrical specifications

Supply	24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Supply type	Transformer (VAC)
Output	1 x SPDT 8A
Inputs	PNP or NPN

Times and functions

Range	0.001 s to 9999 h
Ranges	8
Functions	8 (A, A2, B to G)
Direction	Up or down
Selection	Side DIP switch
Memory after power cut	Yes
Lock	Front keypad

Indications

Display

Setpoint and elapsed time together

Housing and mounting

Format	48 × 48 mm
Connection	11-pin socket (XLT4HU) or plug-in connectors (XLT4HC)
Front	IP65

Accessories

ZB11-0 · 11-pin socket for DIN rail · PG11 · 11-pin socket with rear screw · TBEU1E · 11-pin in-line socket · MA7248 · frame from 72 × 72 to 48 × 48 mm · MA9648 · frame from 96 × 96 to 48 × 48 mm · MA96D48 · frame from 96 × 48 to 48 × 48 mm
