XVEU060 · TOTALIZER COUNTER



TOTALIZER COUNTER



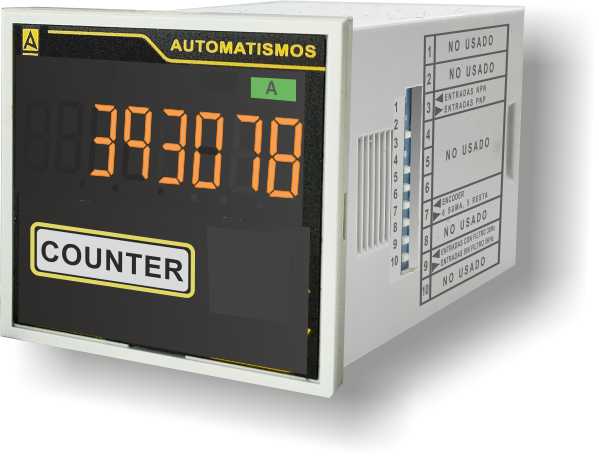

XVEU060 8-digit pulse totaliser: accumulated count of pieces or pulses up to 99,999,999 at 5 kHz, with external reset. 48 × 48 panel.

Product type: Digital pulse totaliser
Installation: 48 × 48 mm panel, 11-pin socket
Display: 8 digits
Inputs: 2 count inputs and 1 reset

Features

  • ✓8-digit accumulated count of pieces or pulses
  • ✓Counting speed up to 5 kHz or 30 Hz for mechanical contacts

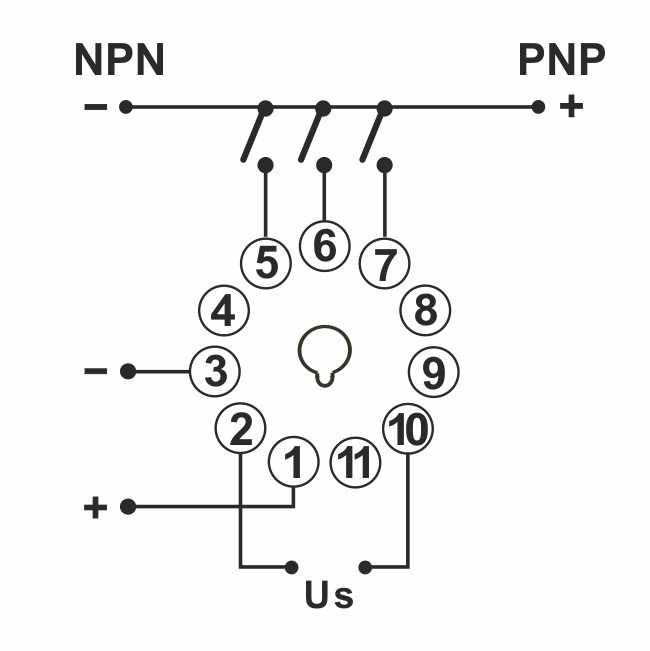

  • ✓Add / subtract: input A (6) adds and input B (5) subtracts
  • ✓Phase discrimination for encoders
  • ✓NPN or PNP inputs selectable by DIP switch
  • ✓12 VDC 50 mA supply for the sensor
  • ✓Reset by external input
Supply
24 … 230 VAC · 12/24 VDC
Count
99,999,999 · 5 kHz
Inputs
NPN or PNP
Format
48 × 48 mm panel

How it works

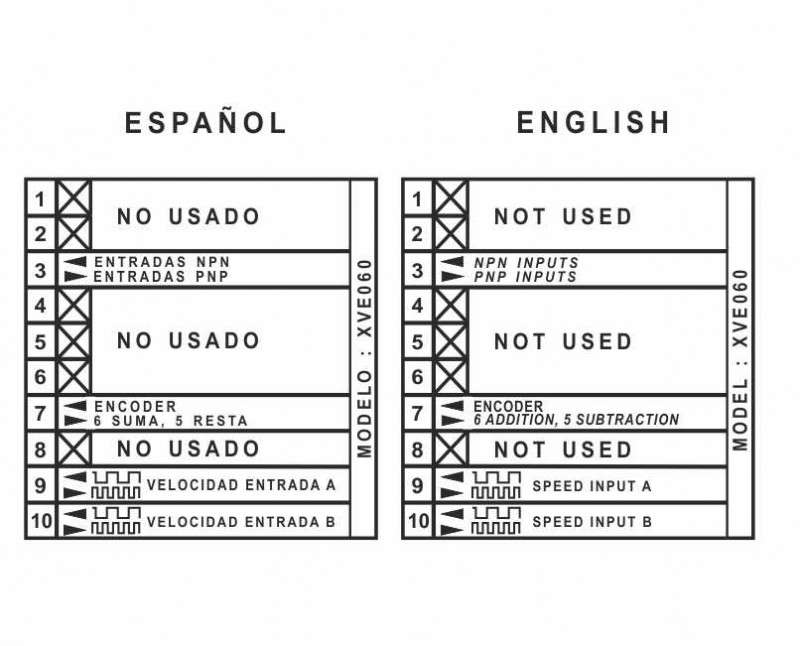

  1. 1With the unit de-energised, the polarity, mode (add / subtract or encoder) and input speed are selected with the side DIP switch.
  2. 2Each pulse on input A adds one to the count; each pulse on input B subtracts one.
  3. 3With an encoder, the direction is detected from the phase of the two signals.
  4. 4The count is reset with the external reset input.

Frequently asked questions

Does it have an output?

No. It is a display totaliser: it shows the accumulated count. To act on a preset, see the XCEU or SCEU counters.

Does it count down?

Yes: with input B (5) the count decreases, and with an encoder it detects the direction from the phase.

Does it count mechanical contacts?

Yes, by selecting the 30 Hz speed with the DIP switch.


General information

Reference XVEU060  (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series X · 48 × 48 mm panel
Product type Digital pulse totaliser

Electrical specifications

Supply 24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Consumption 2.3 VA
Output No output
Sensor supply 12 VDC 50 mA

Count

Capacity Up to 99,999,999
Speed Up to 5 kHz · 30 Hz by DIP switch
Inputs A (add), B (subtract) and reset · NPN or PNP
Encoder Phase discrimination
Reset External

Housing and mounting

Format 48 × 48 mm
Fixing Snap-in bracket
Connection 11-pin socket
Material Grey polycarbonate UL94-V0
Weight ≈ 170 g

Standards and certifications

Compliance CE · 2014/30/EU · 2014/35/EU

Accessories

ZB11-0 · 11-pin socket for DIN rail  ·  PG11 · 11-pin socket with rear screw  ·  TBEU1E · 11-pin in-line socket  ·  MA7248 · frame from 72 × 72 to 48 × 48 mm  ·  MA9648 · frame from 96 × 96 to 48 × 48 mm  ·  MA96D48 · frame from 96 × 48 to 48 × 48 mm
