MSF404RAV-C · CONTROL OF 4 TRAFFIC LIGHTS WITH COMMUNICATION

MSF404RAV-C control of 4 traffic lights with isolated Modbus RTU (RS-485) communication: 3-lamp lights, 5 states, AUTO or LOCAL mode.

Features

• ✓Controls up to 4 traffic lights with 3 lamps: red, amber and green
• ✓Control over Modbus RTU on isolated RS-485
• ✓5 states: flashing amber, red cycle with amber-red transition, fixed amber, fixed green and off
• ✓LOCAL mode to test or control each light from the unit itself
• ✓Keeps the operating mode after a power cut
• ✓Configurable Modbus identifier

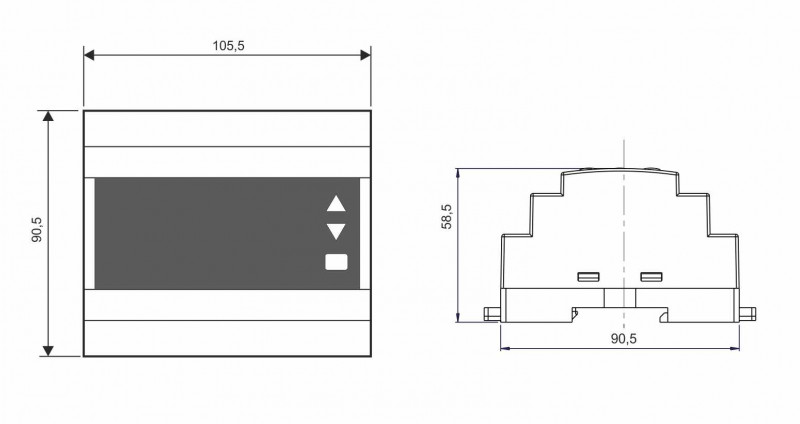

Documentation

How it works

1. 1On power-up, RUN lights up and the unit returns to its last mode, AUTO or LOCAL.
2. 2In AUTO, the Modbus master controls each light (registers from 4001) and reads its state (registers from 3001).
3. 3To switch to LOCAL, ENTER is held for 5 seconds; the keys select the light and its state.
4. 4The identifier is changed by powering up with the increment and decrement keys pressed.
