XVE485 · PULSE DISPLAY WITH COMMUNICATION

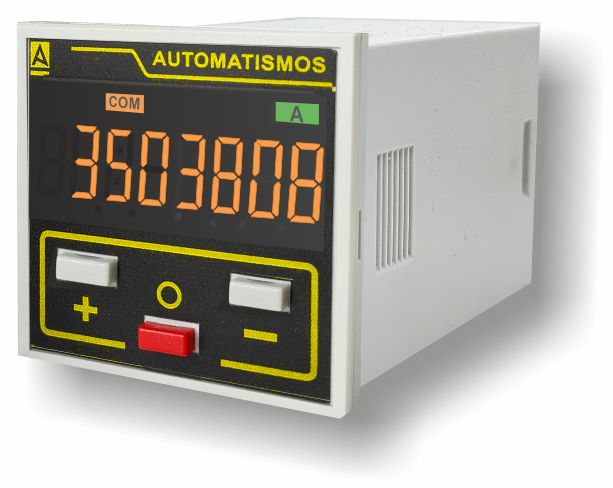

XVE485 pulse display with Modbus RTU (RS-485) communication: add or encoder mode, up to 9,999,999, NPN or PNP inputs. 48 × 48, IP65.

Product type:	Pulse display with communication
Installation:	48 × 48 mm panel, plug-in terminals
Communication:	Modbus RTU over RS-485
Modes:	Add or encoder

Features

✓Modbus RTU (RS-485) communication from 1200 to 19200 baud, formats 8N2, 8O1 and 8E1
✓Adding or encoder counting mode
✓Selectable 5 kHz or 30 Hz counting filter
✓Selectable NPN or PNP inputs
✓Programmable scale factor (prescaler) and decimal point
✓Totaliser: the + key shows the total counter
✓Sensor power supply · IP65 front

Supply

24…230 VAC · 12/24 VDC

Communication

Modbus RTU · RS-485

Counting

Up to 9,999,999

Format

48 × 48 panel · IP65

1To program, power is applied with the + and − keys pressed until «ProG» appears.
2+ and − step through the parameters and the O key edits and confirms them: prescaler, decimal point, polarity, filter and communication.
3In operation, the display shows the current counter; + shows the total and − the decimals.
4The PLC or SCADA reads and writes the registers over Modbus RTU.

Which communication does it have?

Modbus RTU over RS-485, from 1200 to 19200 baud, with formats 8N2, 8O1 and 8E1.

Does it have outputs?

No. It is a display: the value is read on the front or over Modbus.

Did it have another name before?

Yes, its former reference is XVE110.

Reference	XVE485 (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Former reference	XVE110
Series	X · 48 × 48 mm panel
Product type	Pulse display with communication

Range	Up to 9,999,999 pulses
Modes	Add · encoder

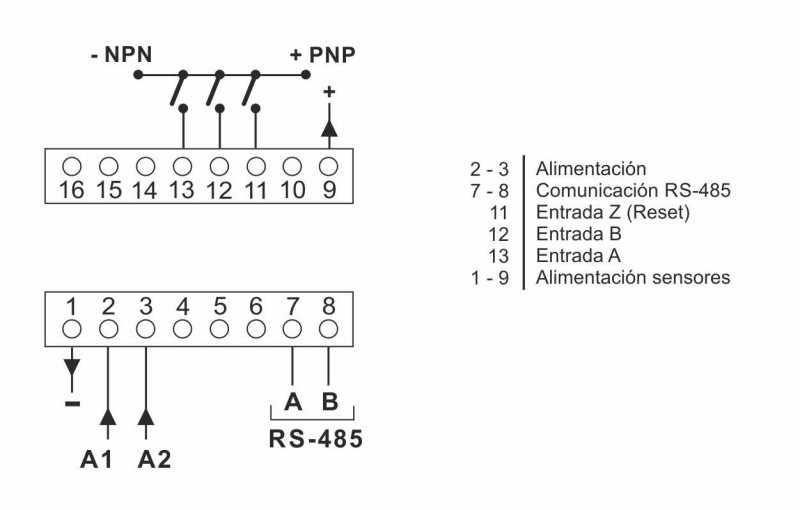

Inputs	2 count inputs (A, B) and 1 reset (Z) · NPN or PNP
Filter	5 kHz or 30 Hz
Programmable	Prescaler, decimal point, polarity and filter
