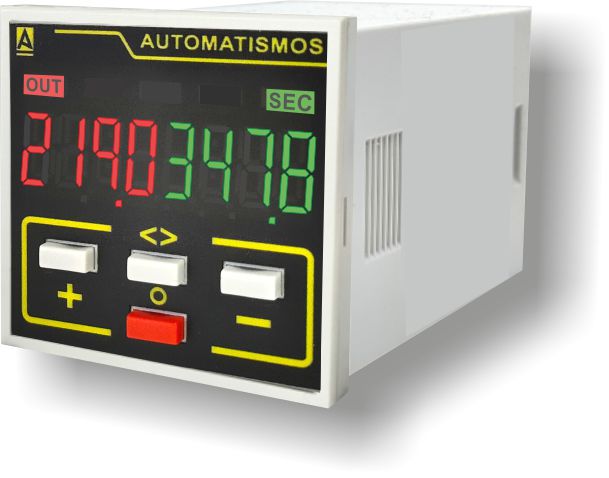

STD485 · MULTIFUNCTION TIMER WITH COMMUNICATION



MULTIFUNCTION TIMER WITH COMMUNICATION



STD485 multifunction timer with Modbus RTU RS485 communication for reading and programming from a PLC, an HMI screen or a SCADA: 8 functions, 8 time ranges from 0.001 s to 9999 h, preset and elapsed time displayed together, up or down timing, NPN / PNP inputs and an 8 A relay output, for 48 × 48 mm panel mounting.

Communication:Modbus RTU · RS485
Time:0.001 s … 9999 h
Format:48 × 48 mm panel

Features

  • ✓8 operating functions
  • ✓8 time ranges, from 0.001 s to 9999 h
  • ✓Preset and elapsed time displayed together
  • ✓Up or down timing
  • ✓NPN / PNP inputs · 12 VDC 50 mA auxiliary supply for sensors
  • ✓SPDT relay output, 8 A 250 VAC
  • ✓Modbus RTU RS485 communication · IP65 front
Power supply
24 / 48 / 110 / 230 VAC · 24 VDC
Output
1 x SPDT 8 A
Time
0.001 s … 9999 h
Mounting
48 × 48 panel

How it works

  1. 1The PLC, HMI screen or SCADA (master) communicates with the STD485 (slave) over the RS485 bus using the Modbus RTU protocol.
  2. 2The master reads the time and programs the unit; the front display shows the preset and the elapsed time together.
  3. 3When the preset is reached, the 8 A relay output operates according to the selected function.

Frequently asked questions

Which communication protocol does it use?

Modbus RTU over RS485: the PLC, HMI screen or SCADA is the master and the STD485 answers as a slave.

Which sensors can be connected to the inputs?

NPN or PNP sensors. The unit has a 12 VDC 50 mA auxiliary supply to power them.

What are the communication parameters?

Please contact us for the STD485 communication parameters for your installation.


General information

ReferenceSTD485
SeriesS · 48 × 48 mm panel
Product typeMultifunction timer with Modbus RS485 communication

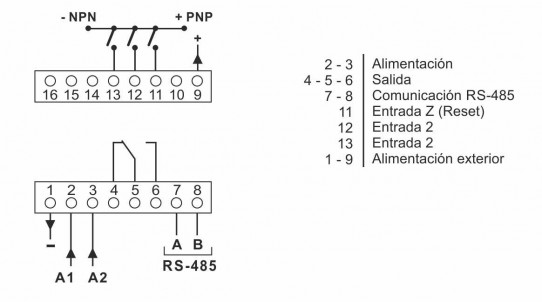

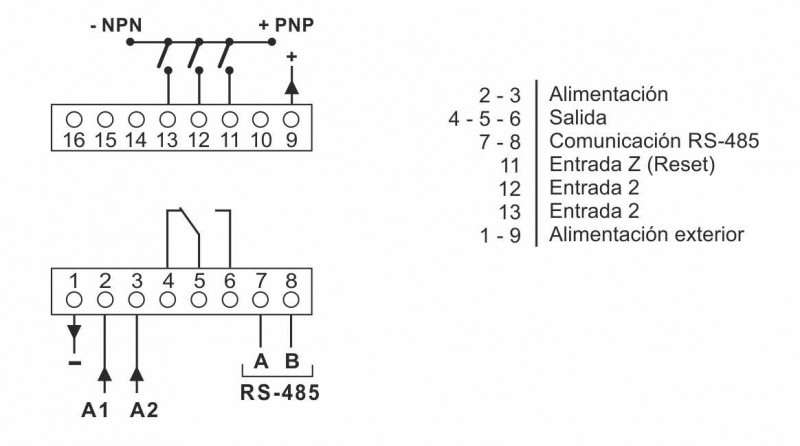

Electrical specifications

Power supply24 / 48 / 110 / 230 VAC · 24 VDC
Auxiliary supply12 VDC 50 mA
InputsNPN / PNP
Output1 x SPDT 8 A / 250 VAC
CommunicationRS485 · Modbus RTU

Functions and features

Functions8
Time range0.001 s … 9999 h (8 ranges)
DirectionUp or down
DisplayPreset and time together

Housing and mounting

Size48 × 48 mm · 88 mm depth with connector
Panel cut-out45 × 45 mm
MountingPanel, snap-in bracket
ConnectionPlug-in connector
ProtectionIP65 front
Weight≈ 170 g
StandardsCE · 2014/35/EU · 2014/30/EU
<
