XTDU120 · BOILER SAFETY

TIMER FOR BOILER SAFETY

Description
Especifications

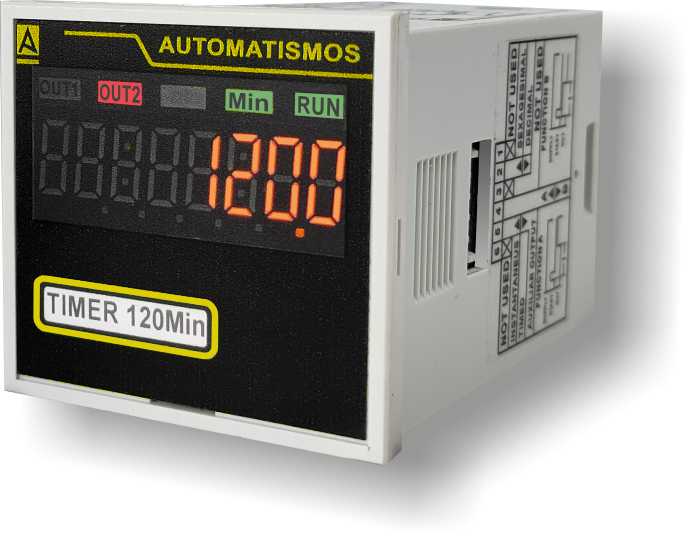

XTDU120 digital boiler safety timer: fixed 120 min time with auxiliary output. Economical version, 48 × 48 panel, IP65 front.

Product type:	Boiler safety timer
Installation:	48 × 48 mm panel, 11-pin socket
Functions:	A: delay · B: interval on closing of the auxiliary contact
Output 2:	Instantaneous or timed, by DIP switch

Features

✓Fixed 120-minute time: cannot be mis-set
✓Auxiliary output configurable as a second timed output or an instantaneous output
✓Time shown in decimal or hours:minutes format
✓Start and reset inputs
✓IP65 front and transformer supply
✓48 × 48 mm format with 11-pin socket

Supply

24 … 230 VAC · 12/24 VDC

Outputs

2 x SPDT 8A

Fixed time

120 min

Format

48 × 48 · IP65

Documentation

Datasheet (PDF in Spanish)Request information Custom unit

How it works

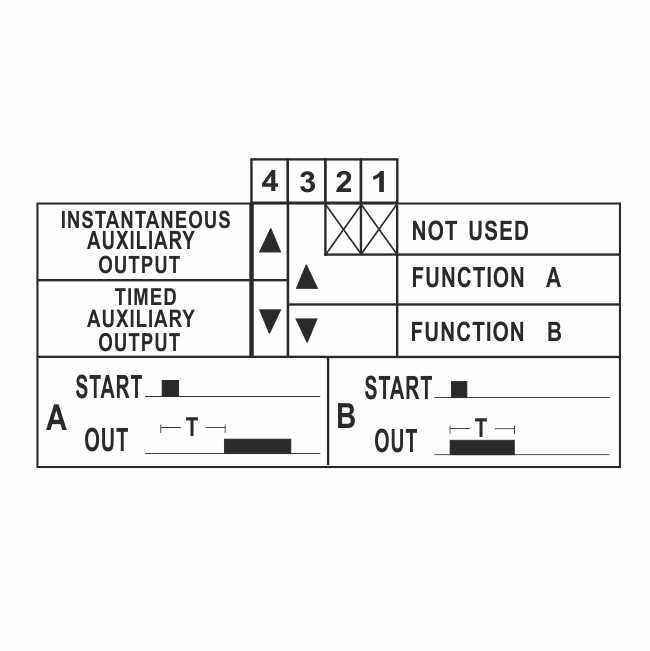

1The function (A or B) and the output 2 type are selected with the side DIP switch.
2The 120 min timing starts when the start contact closes, or on power-up if it is already closed.
3In function A, output 1 switches on after 120 min; in B, the output switches on at start and off at the end.
4The reset contact switches the output off and sets the time back to zero; after a power cut the cycle starts from zero.

You may also be interested in

XTDU2xxBoiler safety with pre-warning ZMS120Boiler safety on DIN rail XTDU321Digital with 2 outputs XTDU302Digital multifunction

Frequently asked questions

What is the difference with the XTD2xx?

The XTDU120 is the economical version: fixed 120 min with auxiliary output. The XTD2xx have a programmable pre-warning output and TEST / RESET buttons.

Can the time be changed?

No, the time is fixed at 120 minutes.

What does output 2 do?

With the side DIP switch it works as a second timed output or as an instantaneous output.

General information

Reference	XTDU120 (24 / 48 / 110 / 230 VAC · 12 / 24 VDC)
Series	X · 48 × 48 mm panel
Product type	Digital boiler safety timer

Electrical specifications

Supply	24 / 48 / 110 / 230 VAC · 12 / 24 VDC
Supply type	Transformer (VAC)
Consumption	2.3 VA
Outputs	2 x SPDT 8A 250 VAC

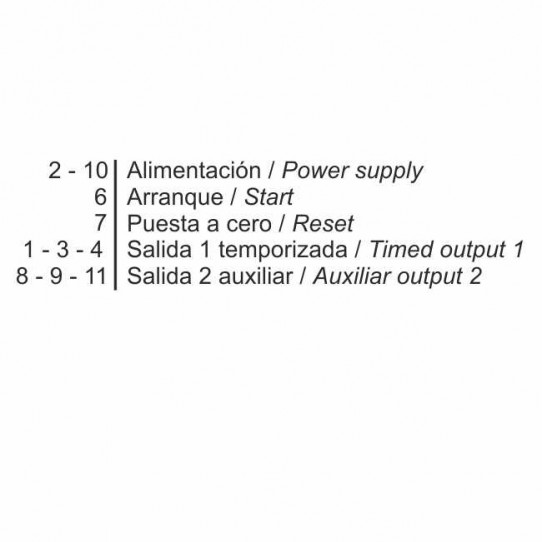

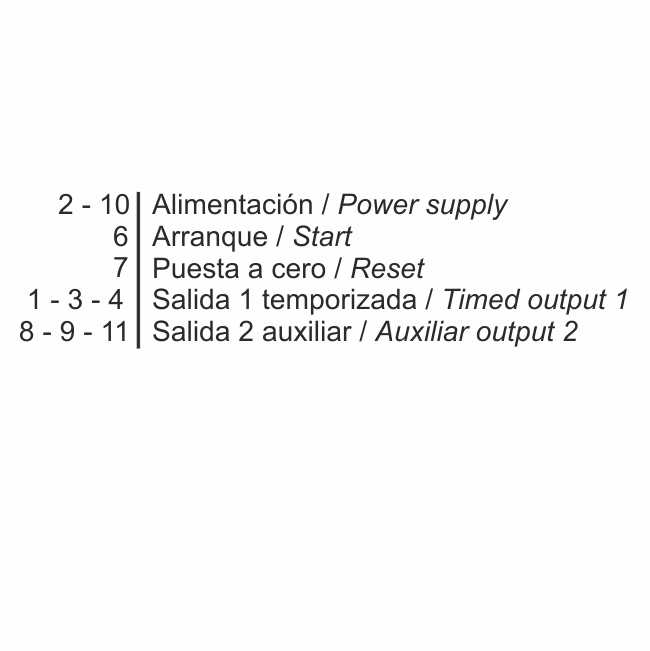

Control inputs	Start · reset

Times and functions

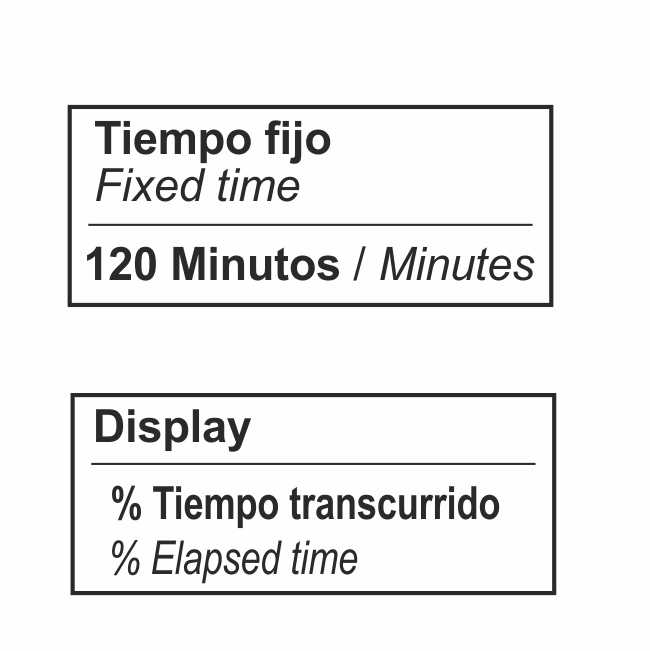

Time	Fixed, 120 min
Functions	A: on-delay of the auxiliary contact · B: interval on closing of the auxiliary contact
Display	Decimal or hours:minutes

Indications

Display

Time in decimal or hours:minutes format

Housing and mounting

Format	48 × 48 mm
Panel cut-out	45 × 45 mm
Fixing	Snap-in bracket

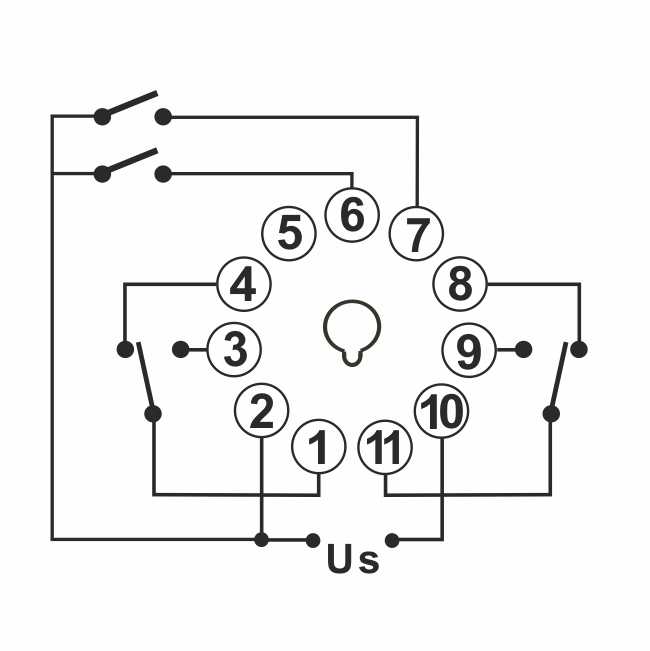

Connection	11-pin socket
Front	IP65
Material	Grey polycarbonate UL94-V0
Weight	≈ 170 g

Environmental conditions

Operating temperature	−10 to +55 °C
Storage temperature	−25 to +85 °C

Standards and certifications

Compliance

CE · 2014/35/EU · 2014/30/EU

Accessories

ZB11-0 · 11-pin socket for DIN rail · PG11 · 11-pin socket with rear screw · TBEU1E · 11-pin in-line socket · MA7248 · frame from 72 × 72 to 48 × 48 mm · MA9648 · frame from 96 × 96 to 48 × 48 mm · MA96D48 · frame from 96 × 48 to 48 × 48 mm
