ZMSV01 · MULTIESCALE 2 FUNCTIONS

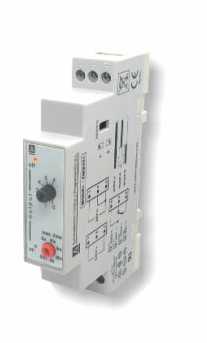

ZMSV01 analogue timer in 1 DIN module: 2 functions (on-delay or interval on energising), from 0.6 s to 60 h in 6 ranges.

Product type:	Multi-range analogue timer
Installation:	DIN rail, 1 module
Functions:	On-delay or interval on energising
Ranges:	6, from 0.6 s to 60 h

Features

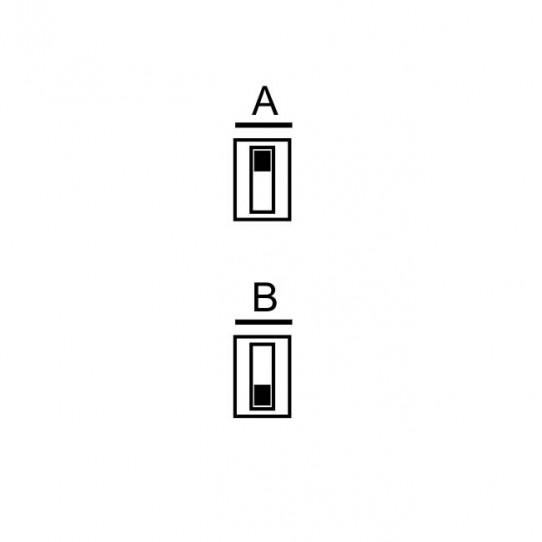

✓2 functions selected with the side DIP switch: on-delay and interval on energising

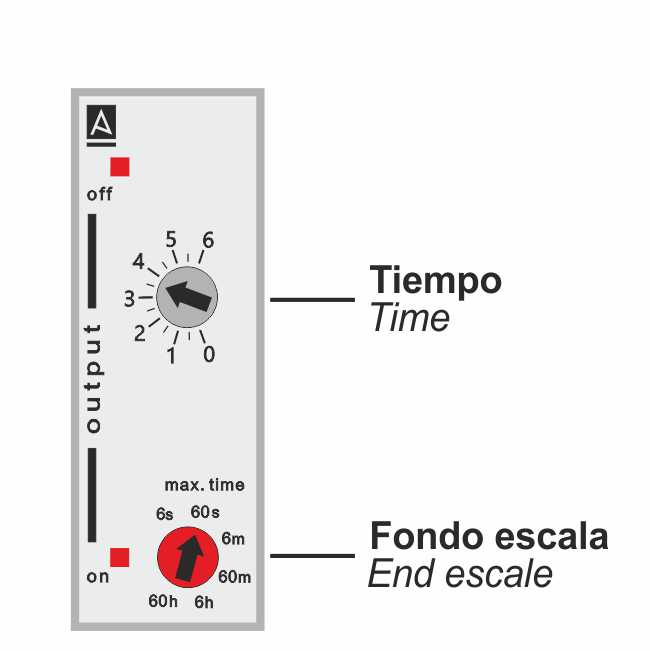

✓6 time ranges from 0.6 s to 60 h, chosen with the front potentiometer
✓Two operating voltages: 230 VAC and 24 VAC/DC
✓Operation LEDs
✓1-module format (17.5 mm) for DIN rail

Supply

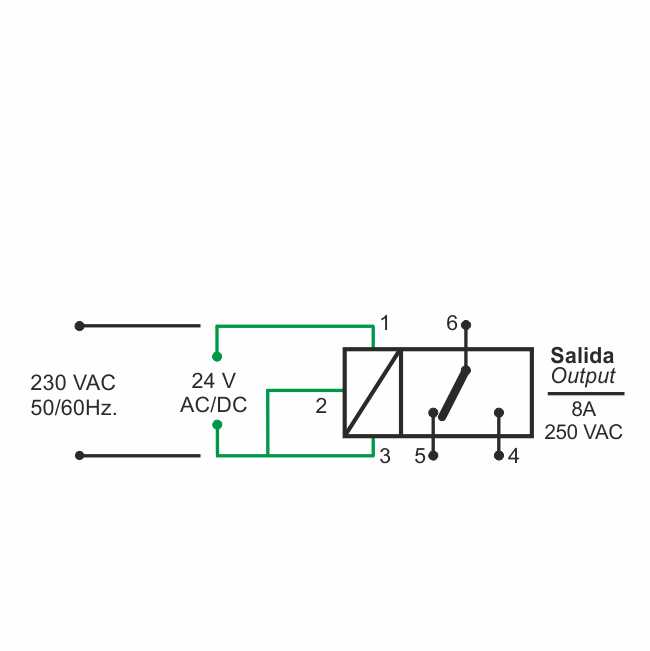

230 VAC · 24 VAC/DC

Output

1 x SPDT 5A

Times

0.6 s … 60 h

Mounting

DIN rail · 17.5 mm

1The function is selected with the side DIP switch, with the unit powered off.
2The range is chosen and the time is set with the front potentiometer.
3On-delay: timing starts on power-up and the output switches on when it ends.
4Interval on energising: the output switches on at power-up and off when the time ends.

Which functions does it have?

Two: on-delay and interval on energising. They are selected with the side DIP switch, with the unit disconnected.

What time range does it cover?

From 0.6 s to 60 h in 6 ranges: 6 s, 60 s, 6 min, 60 min, 6 h and 60 h.

What voltage does it run on?

230 VAC or 24 VAC/DC.

Functions	On-delay · interval on energising (side DIP switch)

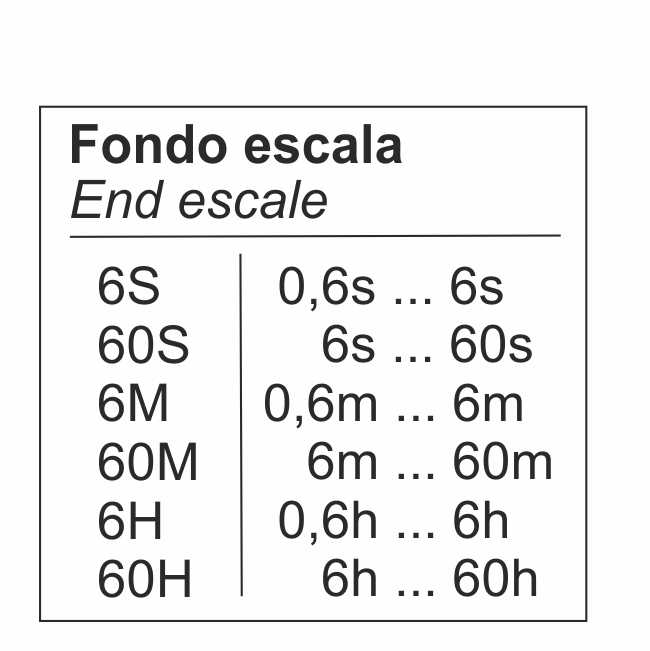

Ranges	6 s (0.6–6 s) · 60 s (6–60 s) · 6 min (0.6–6 min) · 60 min (6–60 min) · 6 h (0.6–6 h) · 60 h (6–60 h)
Setting	Front potentiometer
